Manufacturer of waterproof outdoor aluminum solar floor lights with poles

Model NO. YF-GL

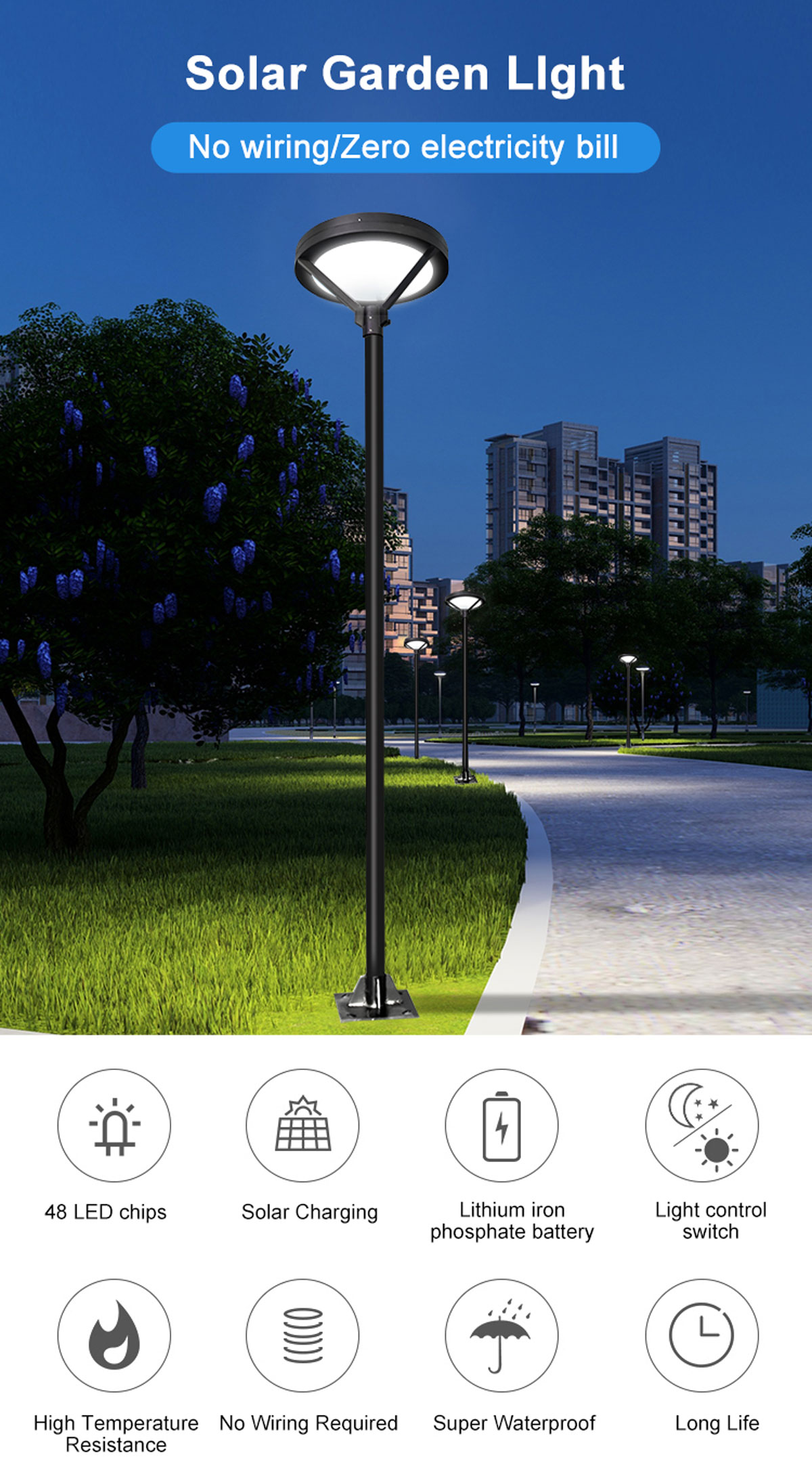

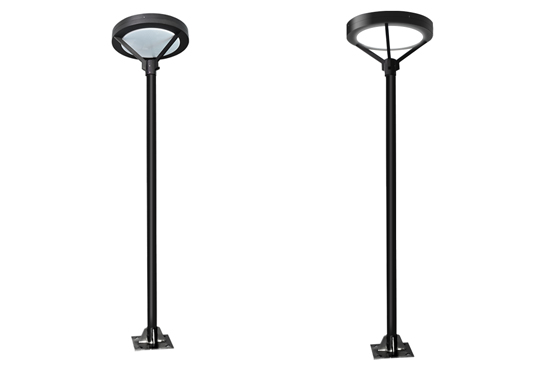

solar landscape light globe shape, pole included, aluminum housing

INQUIRY NOW
Main Features


1, All-in-one design:  solar panel, Li-Fi PO4 battery, led lamp, intelligent controller and aluminum case all in one, easy installing, low construction cost, and convenient shipping.

2, All components are made of water proofing, including the cable connectors, to make sure the whole solar street light to be IP65.

3, The shell is made from aluminum alloy, private mold elegant design, working together with waterproof and airless technology which is easy to install as there is no need of connection or wiring.

4, Imported mono crystalline solar panel, 22-24% high efficiency, 25years lifespan

5, Super brightness branded led chip, 200lm/w. professional optical, and transmittance rate 95%.

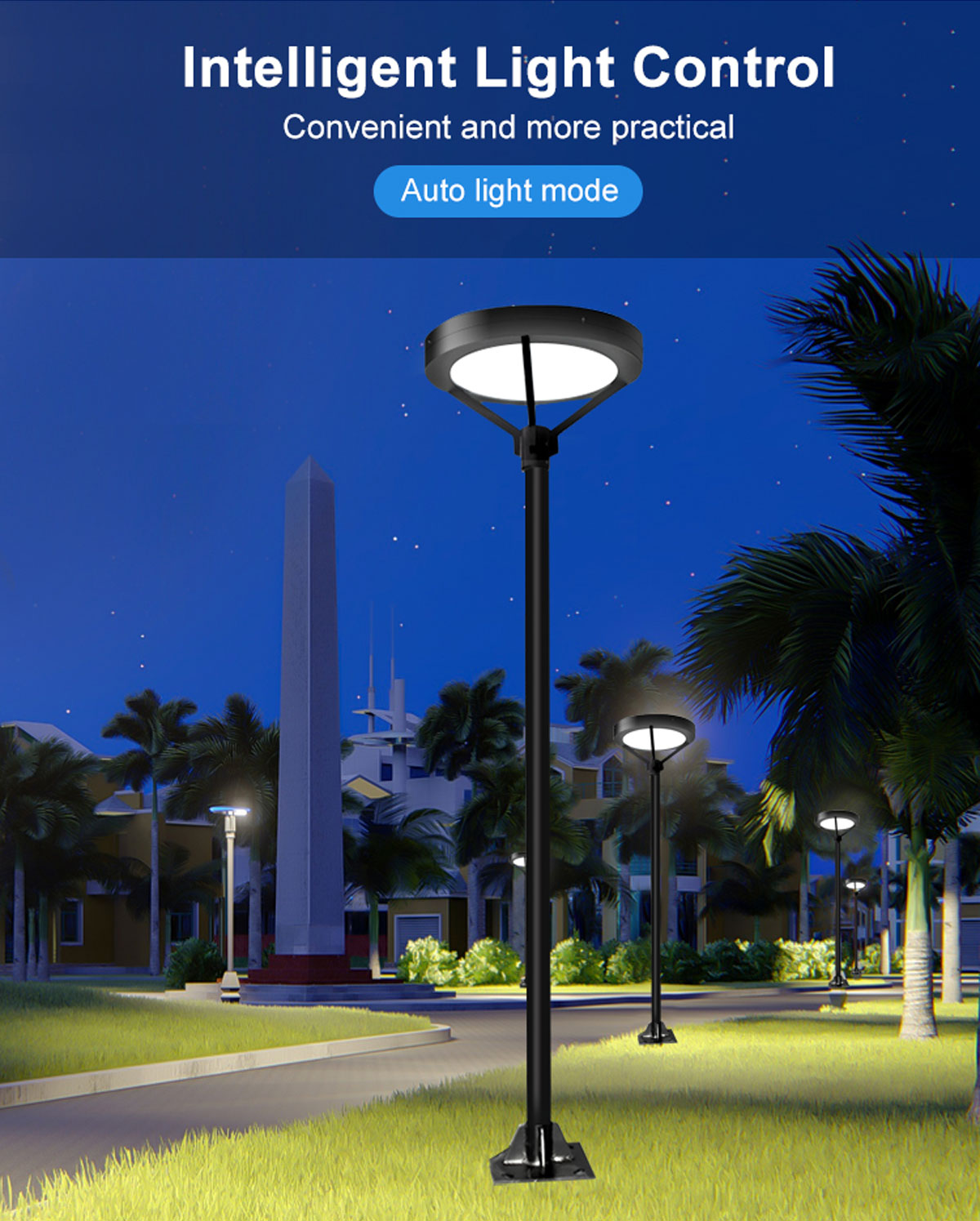

6, Smart PIR sensor, auto-adjust brightness.

7, MPPT controller 99% converting efficiency


Parameter

Mono solar panel:40W 5.0V

Power:20W

LED chip:3030   48pcs

Peak luminous flux: 3000LM

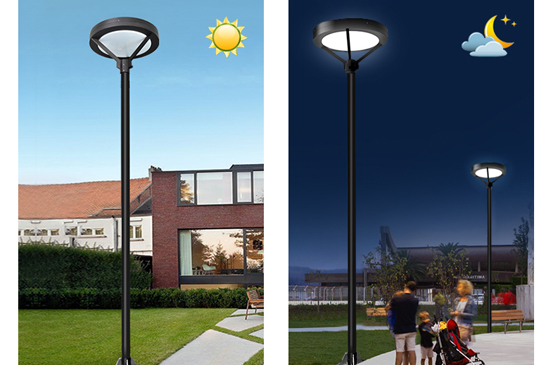

Working Model: Timing Auto ON/OFF

LiFePO4 battery:  320WH

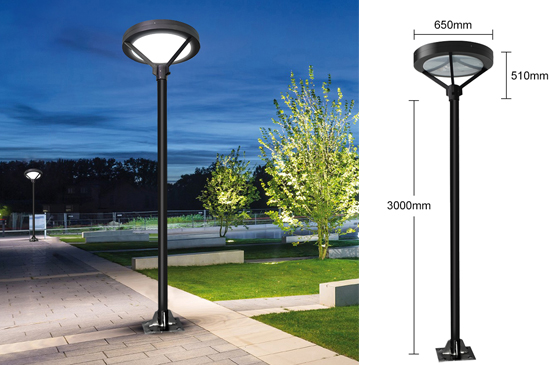

lamp size:φ656*H3000mm

Discharge time: 24Hrs

Charging time:6-8Hrs

CCT: 3000K/6000K

Packing: Lamp 650x650x510mm

1pcs/Ctn  Lamp G.W  15kg

Pole:H3000mm,

Flange size:250x250mm

Pole G.W: 18kg

IP grade: IP65

Material:ADC12+PMMA+Q235

MODEL

YF-SR-656


MPPT charge controller

including wireless communication module

PV Module

45W

Working mode

Time model

Life time

25years ( The power attenuation of each year is around 1%)

Circuit Protection

Overcharge, discharge, short circuit, open load, lightning protection and other functions

Light efficiency

80LM/Wmilky diffuser

Life time

8years

LED chip

3030 LED/48pcs

Charging Time (STC)

6-8Hours (With STC)

Total lumen

1800lm-2200LM

Certificate

CEROSHIP65

Light distribution type

Type C

Working Temperature

-20~+60(When the temperature is below -10,derating use  )

viewing Angel

100°

Storage Temperature

0~45

Color Temperature

3000K-6500KTypical value5500K-6000K

Protection Grade

IP65

Color rendering index

80

Dimension Size(mm)

φ656*H360mm

Life time

10years

Installation Height

3m

Battery Tape

LiFePO4 battery

Installation Diameter

≤76mm

Battery Capacity

192WH/275WH

Pole height

3meters (included)

Battery life time

 (5-8years)

Warranty

3years


Product Details


FAQ:

Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.



Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.



Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.



Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.





Q: are your manufacturer? how about your production capacity and delivery lead time?

A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.



Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.



Q: do you help installation, maintenance and commissioning?

A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.
