| Model | YF-OPTIMUS-40W-ES | YF-OPTIMUS-60W-ES | YF-OPTIMUS-80W-ES | YF-OPTIMUS-100&120W-ES | YF-OPTIMUS-150W-ES | YF-OPTIMUS-170W-ES |
| LED Efficiency | 210lm/W | 210lm/W | 210lm/W | 210lm/W | 210lm/W | 210lm/W |
| LED Chip | 3030LED | 3030LED | 3030LED | 3030LED | 3030LED | 3030LED |
| Charge Controller | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| PV Module | 65W Mono | 80W Mono | 100W Mono | 120W Mono | 140W Mono | 160W Mono |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Capacity | 384WH | 487WH | 676WH | 896/1030WH | 1150WH | 1352WH |

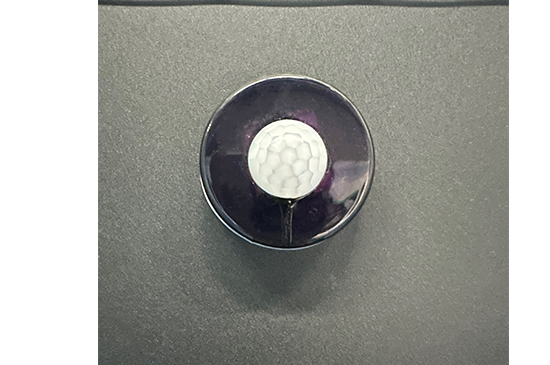

| Working Mode | With Motion Sensor | With Motion Sensor | With Motion Sensor | Time Dimming | Time Dimming | Time Dimming |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Viewing Angle | 70°*140° | 70°*140° | 70°*140° | 70°*140° | 70°*140° | 70°*140° |
| CCT | 5500K~6000K | 5500K~6000K | 5500K~6000K | 5500K~6000K | 5500K~6000K | 5500K~6000K |
| Certificate | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS |
| Working Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Product Dimension | 960*445*73mm | 1140*445*73mm | 1270*445*73mm | 1550*445*88mm | 1730*445*88mm | 2010*445*88mm |
