All in one solar street light with Self robot cleaning system, anti-brid design, PIR/microwave/Bluetooth/IoT function for optional, 180lm/w, MPPT charge controller, LiFePO4 battery pack, Multiple installation methods, adjustable bracket...
INQUIRY NOW

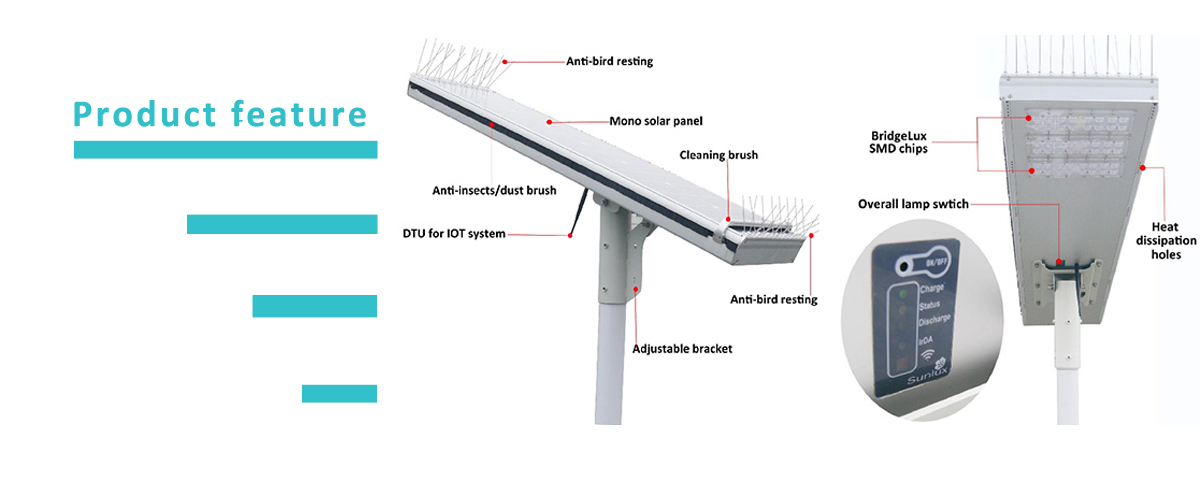

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.
· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.
· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w
· Bluetooth function, just use mobile to control the lamp and set working parameter.
· PIR/microwave sensor for optional.

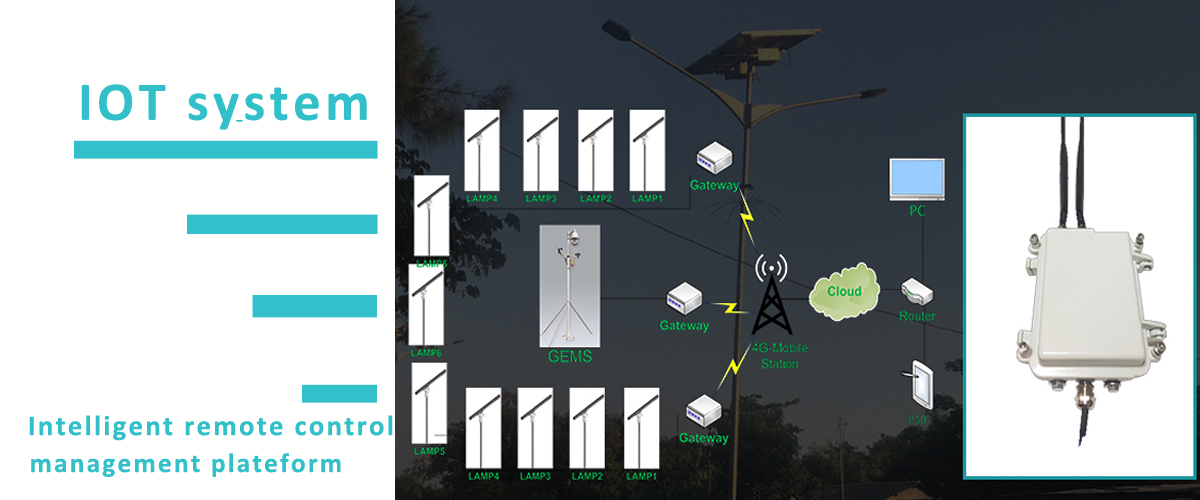

· Internet of things is also optional function, make all lamp work smart and intelligent control
· Range from 2000lm to 12000lm, meet even exceed your expectation,
· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.

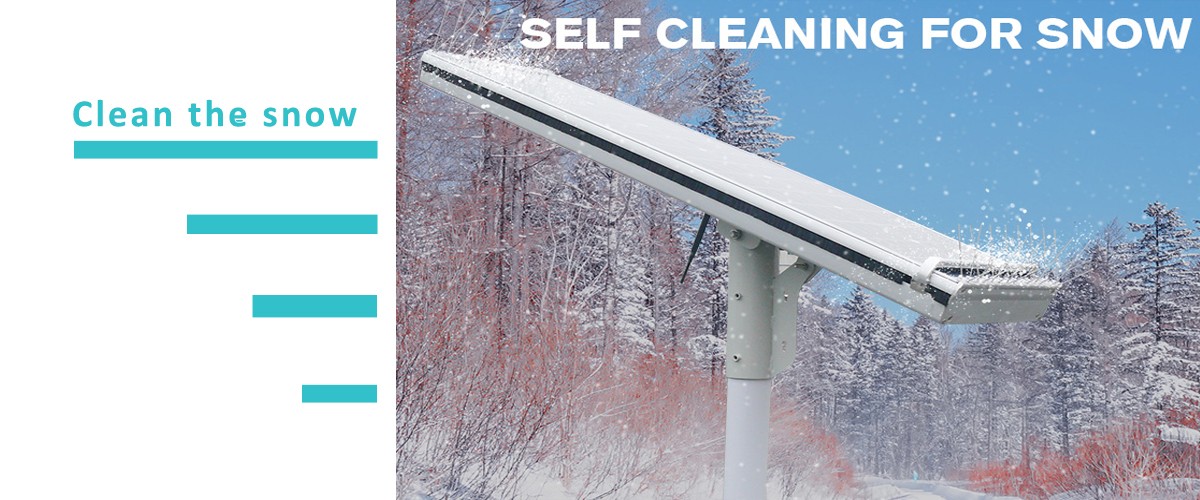

· Self-cleaning system
Why need to clean solar panel？
· Dust, sand, bird drops or any other particles on surface of the solar panel will reduce charge efficiency.
How to clean the solar panel?
· Traditional way is artificially cleaning by pressured water wash in regular period. it is labor costly especial for high pole.
Do you have any better solution?

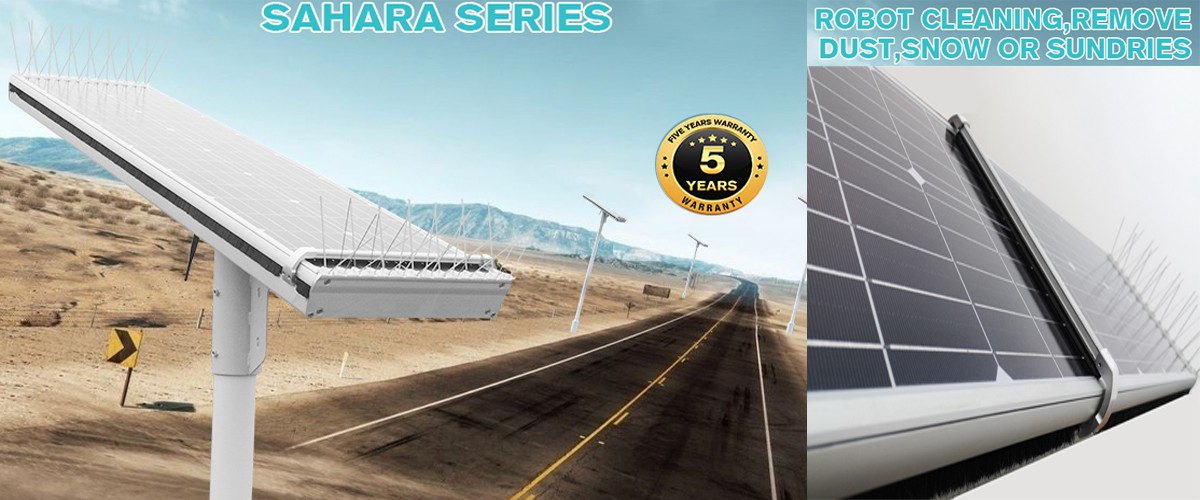

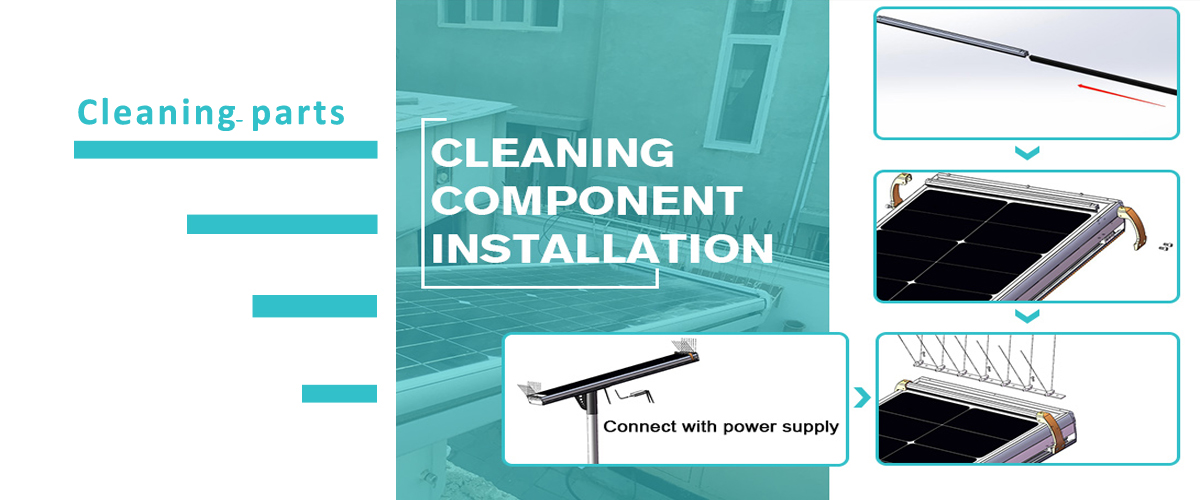

· SAHARA series integrated Robot cleaning system with solar street light, from dawn and dusk, this solar street light will automatically clean the solar panel twice. keep all panel surface is tidy and neat to achieve best power generation performance. it is free of maintenance work.
How many times will it auto clean per day?
· twice per day, clean from dawn and dust.1 cycle back and forth via solar panel surface
How much energy power the cleaning system will consume?
· it's about 3-5w.
What’s type material of cleaning brush? How is the lifespan?
· It's anti-Uv Rubber brush. same as what the car windshield wiper. More than 3 years in outdoor environment.
| Model | YF-SHA-60W | YF-SHA-80W |
| LED Street Light Power | 60W（3 LED Modules) | 80W（4 LED Modules) |

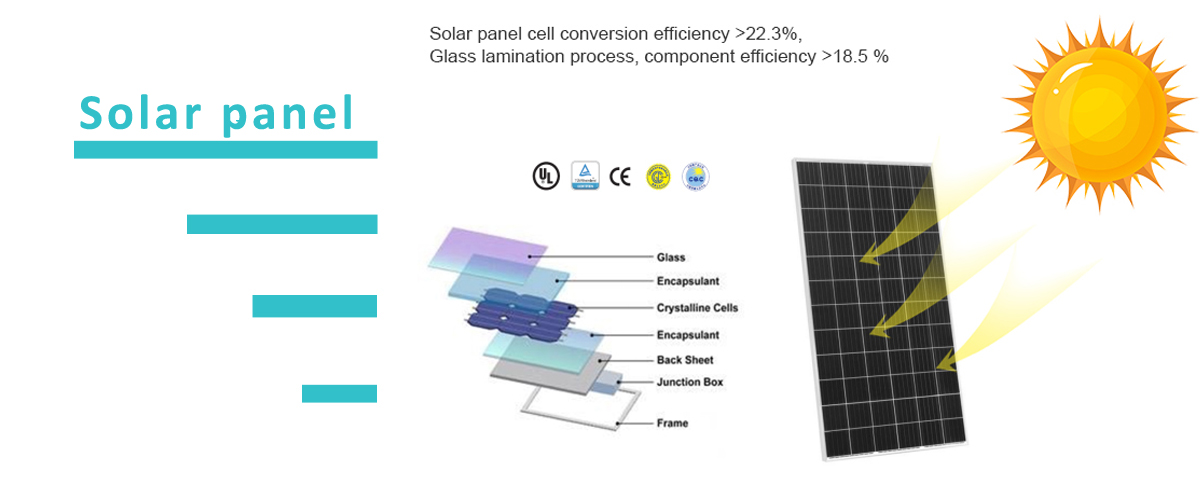

| PV Model | 90W | 120W |
| Light Efficiency | 150lm/w | 150lm/w |

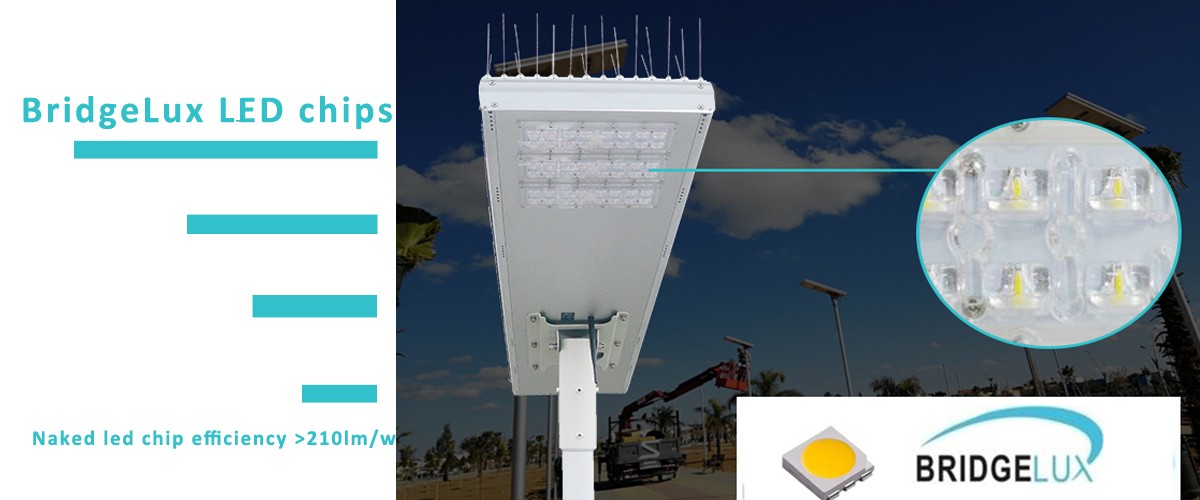

| LED Chip | 5050 LED BridgeLux | 5050 LED BridgeLux |
| Light Distribution Type | Type II | Type II |
| Viewing Angle | 70°*140° | 70°*140° |
| CRI | >80 | >80 |
| Lifetime | >10 years | >10 years |
| Battery Tape | LiFePO4 Battery | LiFePO4 Battery |
| Battery Capacity | 422WH | 768WH |
| Battery life time | (5-8 years) | (5-8 years) |

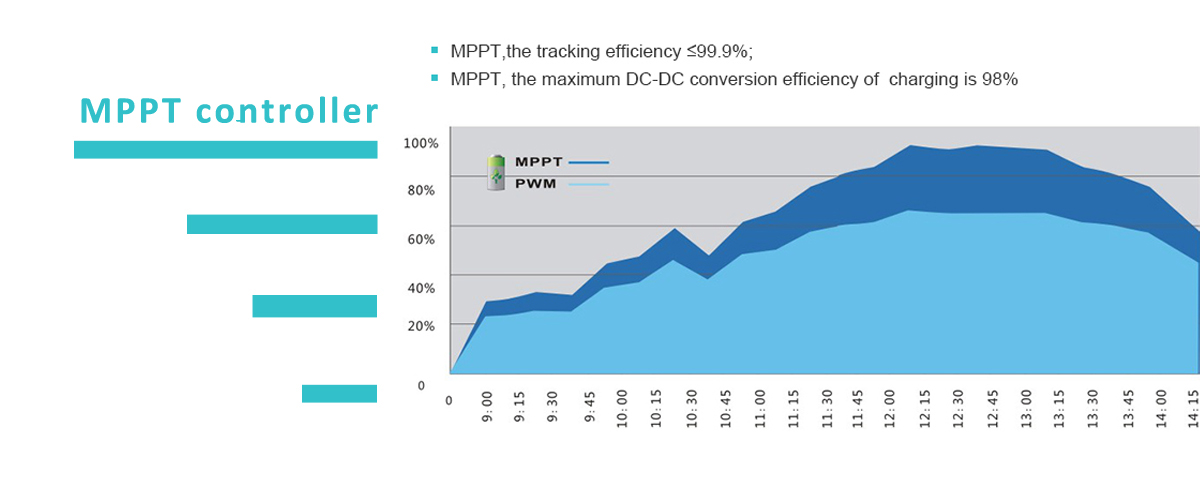

| MPPT Change Controller | Including Wireless Communucation Module | Including Wireless Communucation Module |
| Working model | With motion sensor | With motion sensor |
| Circuit Protection | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions |
| Life Time | 8years | 8years |
| Charging Time(STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) |
| Certificate | CE、ROSH、IP65 | CE、ROSH、IP65 |
| Storage Temperature | 0℃~45℃ | 0℃~45℃ |
| Protection Grade | IP65 | IP65 |
| Dimension Size(mm) | L1310*W358*H98.8mm | L1610*W358*H98.8mm |
| Installation Height | 6m to 8m light pole | 6m to 8m light pole |
| Installation Diameter | ≤80mm | ≤80mm |
| Distance of Installation | 20m to 35m | 25m to 40m |
| Warranry | 3years | 3years |
60w all in one solar street light with self cleaning system
· PIR/microwave/Bluetooth/IoT system for optional,
· Multiple installation methods,
· Energy saving, individual battery pack,
· Adjustable bracket
60w all in one solar street light with self cleaning system
