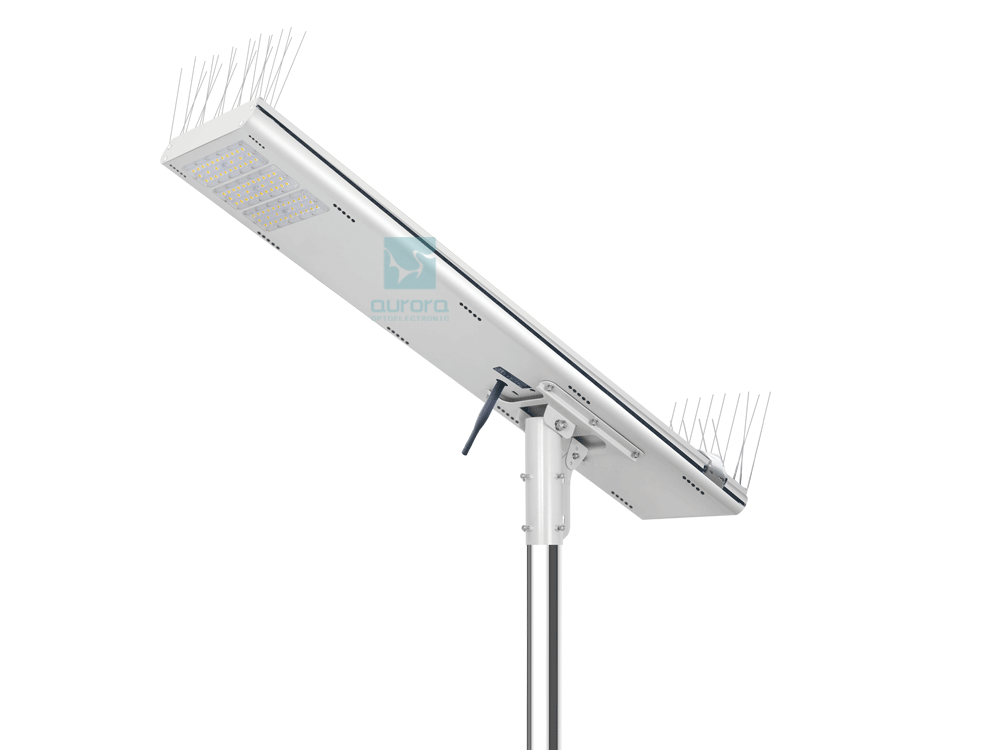

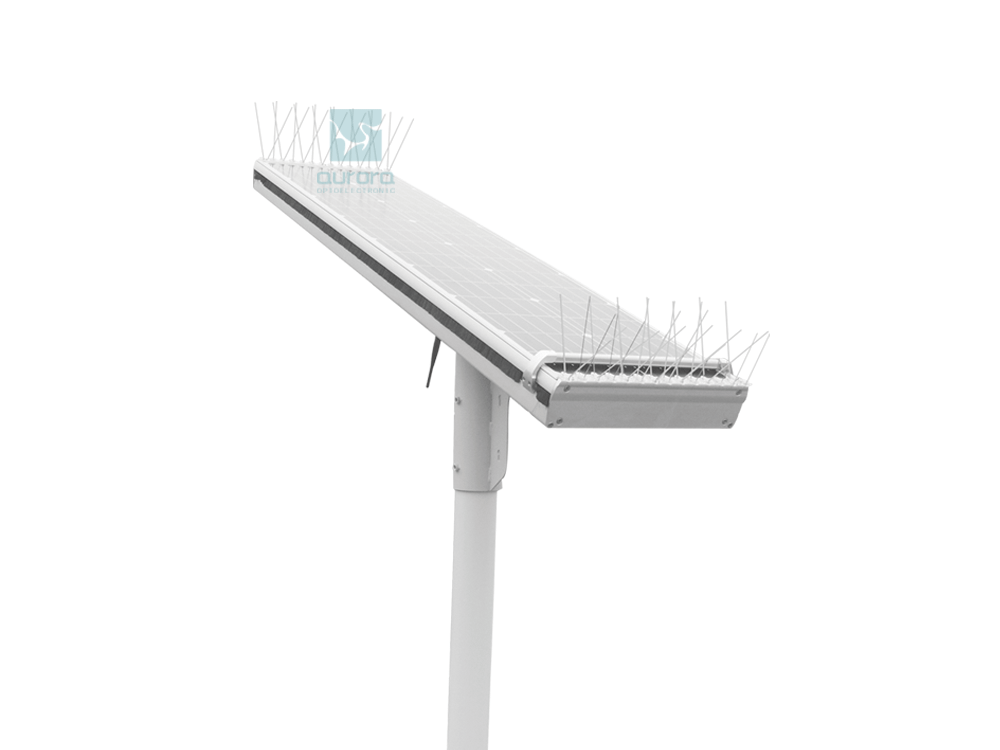

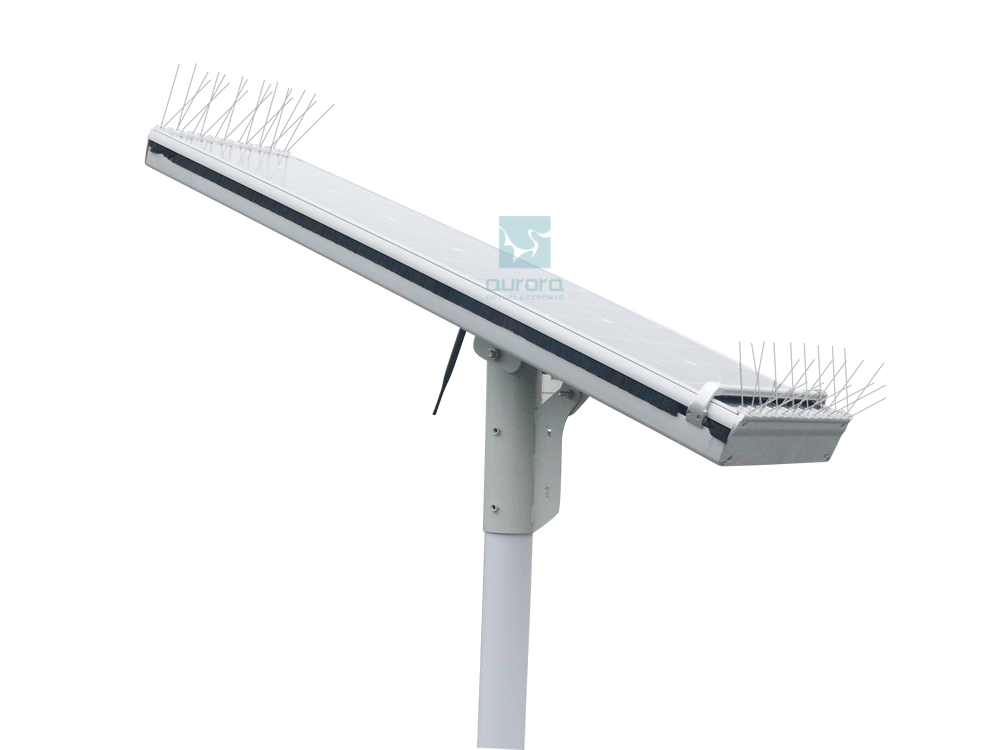

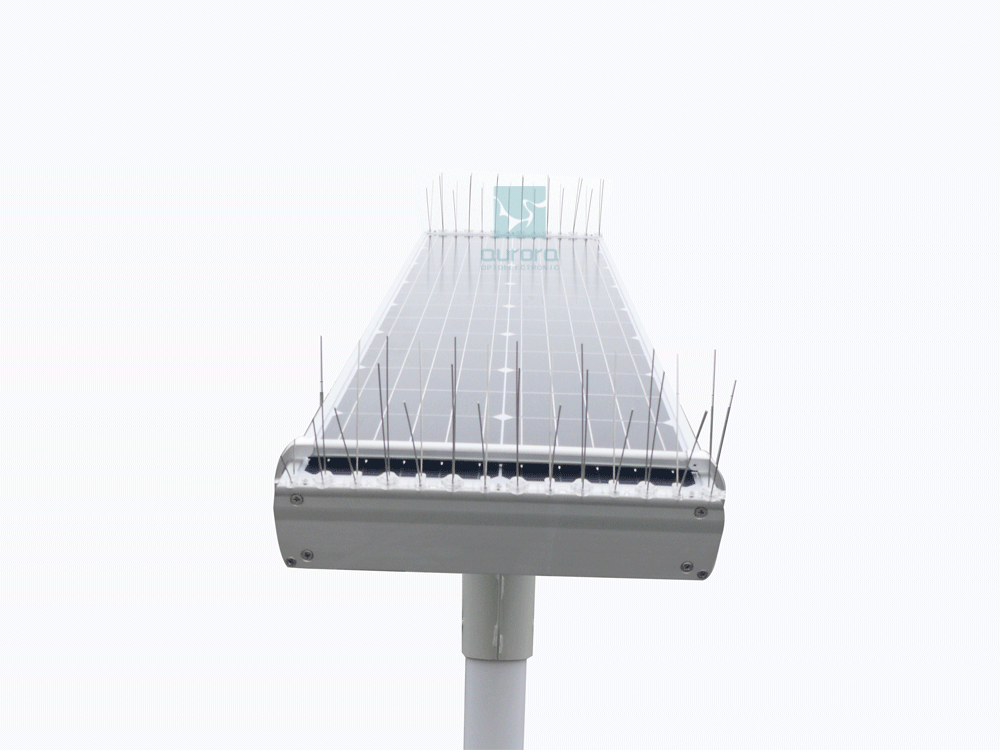

80W integrated solar street light with automatic robotic Solar Panel Cleaning System

Model NO. YF-SHA-80W

All in one solar street light with Self robot cleaning system, anti-brid design, PIR/microwave/Bluetooth/IoT function for optional, 180lm/w, MPPT charge controller, LiFePO4 battery pack, Multiple installation methods, adjustable bracket...

Main Features

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.

· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w

· Bluetooth function, just use mobile to control the lamp and set working parameter.

· PIR/microwave sensor for optional.

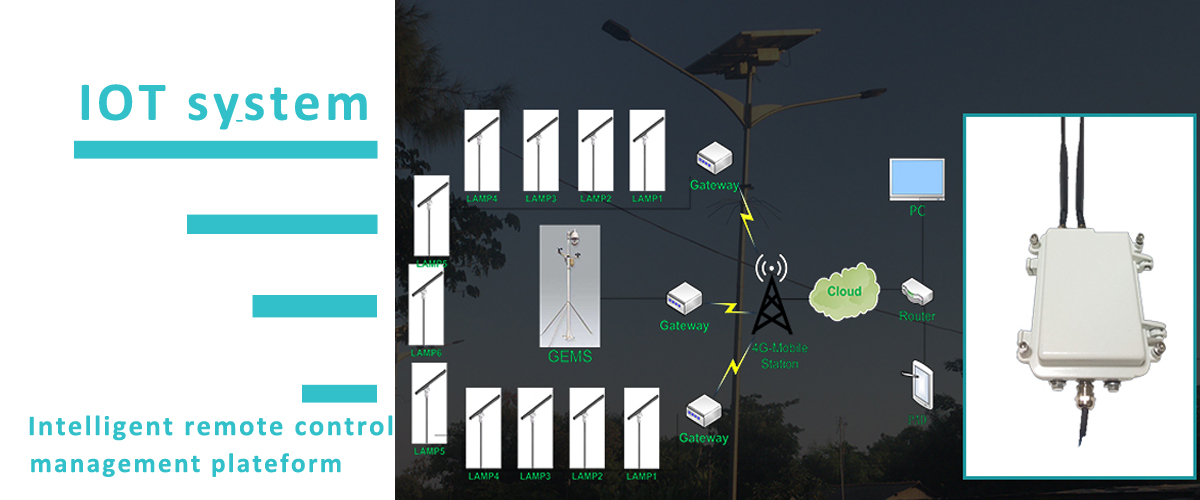

· Internet of things is also optional function, make all lamp work smart and intelligent control

· Range from 2000lm to 12000lm, meet even exceed your expectation,

· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.

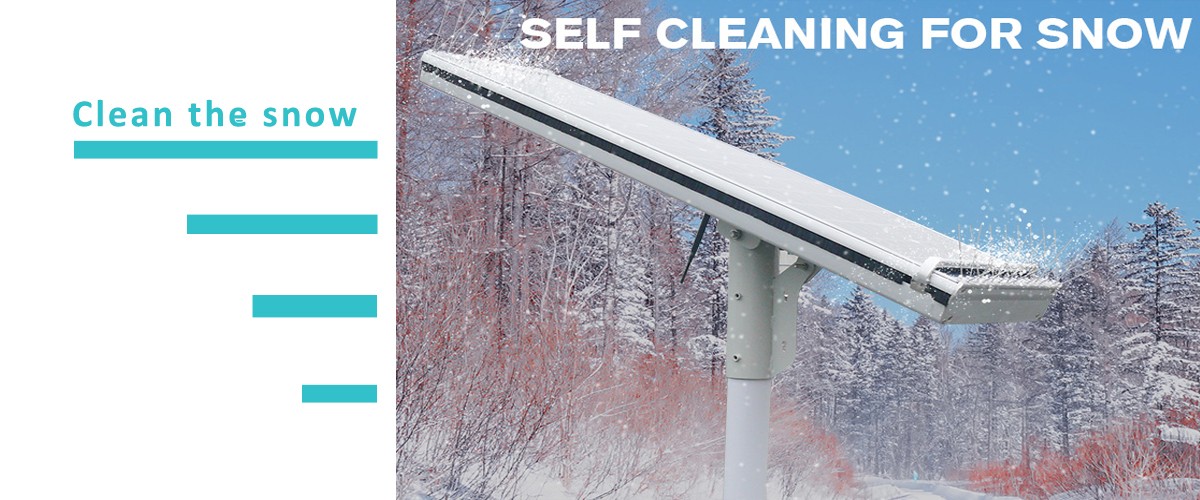

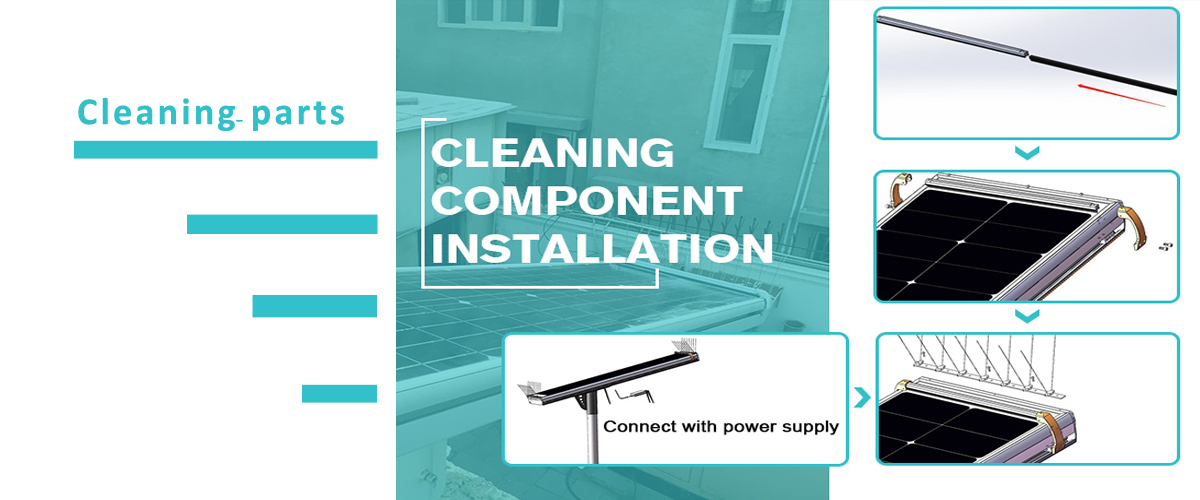

· Self-cleaning system

Why need to clean solar panel?

· Dust, sand, bird drops or any other particles on surface of the solar panel will reduce charge efficiency.

How to clean the solar panel?

· Traditional way is artificially cleaning by pressured water wash in regular period. it is labor costly especial for high pole.

Do you have any better solution?

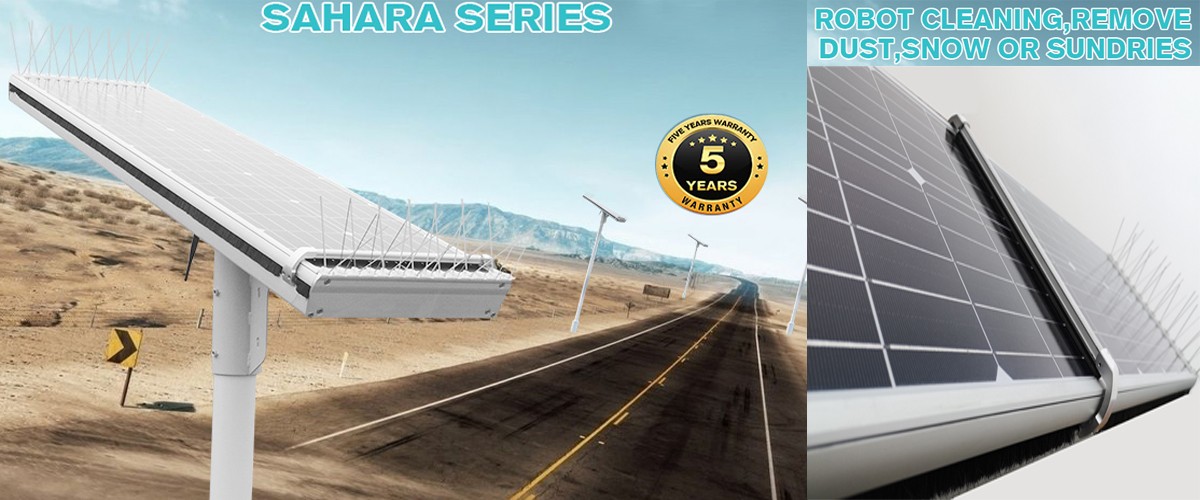

· SAHARA series integrated Robot cleaning system with solar street light, from dawn and dusk,  this solar street light will automatically clean the solar panel twice. keep all panel surface is tidy and neat to achieve best power generation performance. it is free of maintenance work.

How many times will it auto clean per day?

· twice per day, clean from dawn and dust.1 cycle back and forth via solar panel surface

How much energy power the cleaning system will consume?

· it's about 3-5w.

What’s type material of cleaning brush? How is the lifespan?

· It's anti-Uv Rubber brush. same as what the car windshield wiper. More than 3 years in outdoor environment.

solar road light price

solar street light suppliers

best street light

highway street lights

solar battery cost

Solar panels

Solar architecture

Solar street light structure diagram

LED Street Light Power60W(3 LED Modules)80W(4 LED Modules)

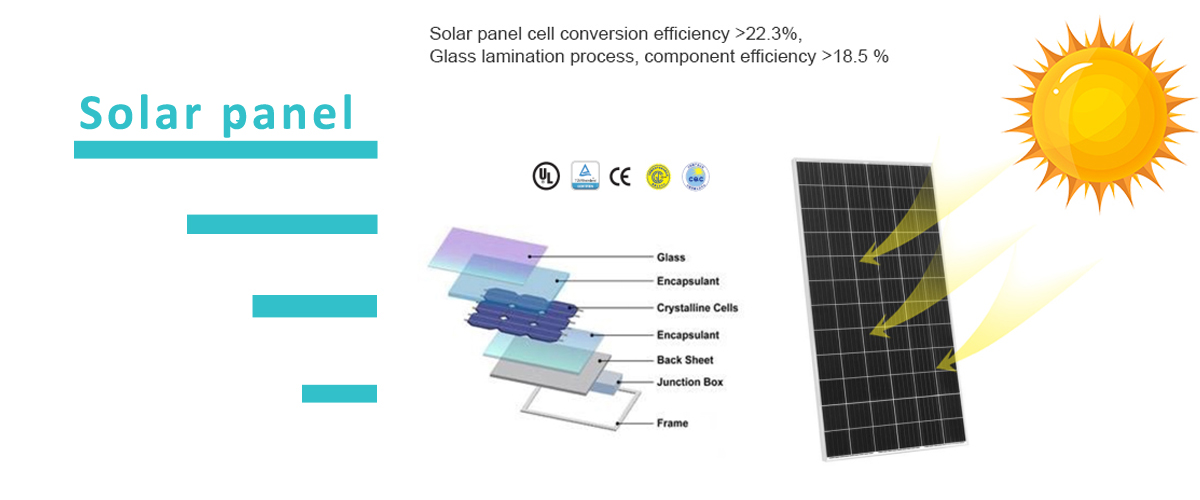

PV Model90W120W
Light Efficiency150lm/w150lm/w

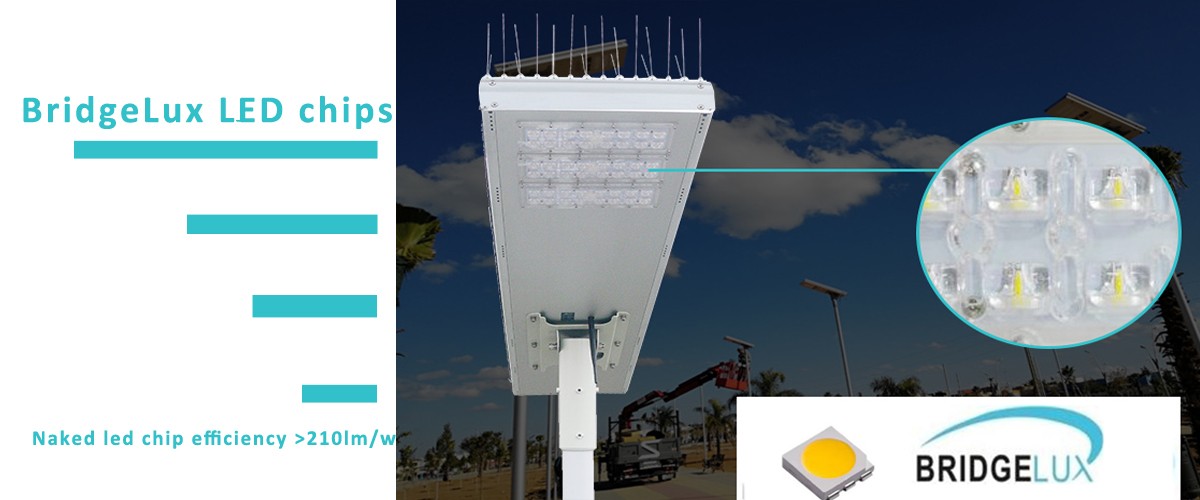

LED Chip5050 LED BridgeLux5050 LED BridgeLux
Light Distribution TypeType IIType II
Viewing Angle70°*140°70°*140°
Lifetime>10 years>10 years
Battery TapeLiFePO4 BatteryLiFePO4 Battery
Battery Capacity422WH768WH
Battery life time(5-8 years)(5-8 years)

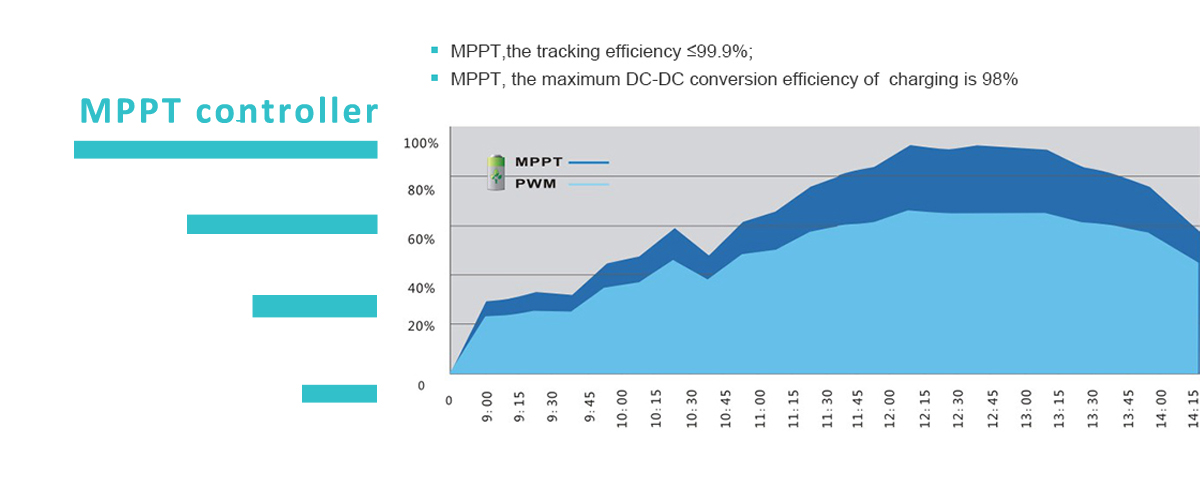

MPPT Change ControllerIncluding Wireless Communucation ModuleIncluding Wireless Communucation Module
Working modelWith motion sensorWith motion sensor
Circuit ProtectionOvercharge,Discharge,short circuit,open load,lightning protection and other functionsOvercharge,Discharge,short circuit,open load,lightning protection and other functions
Life Time8years8years
Charging Time(STC)6-8 Hours(With STC)6-8 Hours(With STC)
Storage Temperature0℃~45℃0℃~45℃
Protection GradeIP65IP65
Dimension Size(mm)L1310*W358*H98.8mmL1610*W358*H98.8mm
Installation Height6m to 8m light pole6m to 8m light pole
Installation Diameter≤80mm≤80mm
Distance of Installation20m to 35m25m to 40m

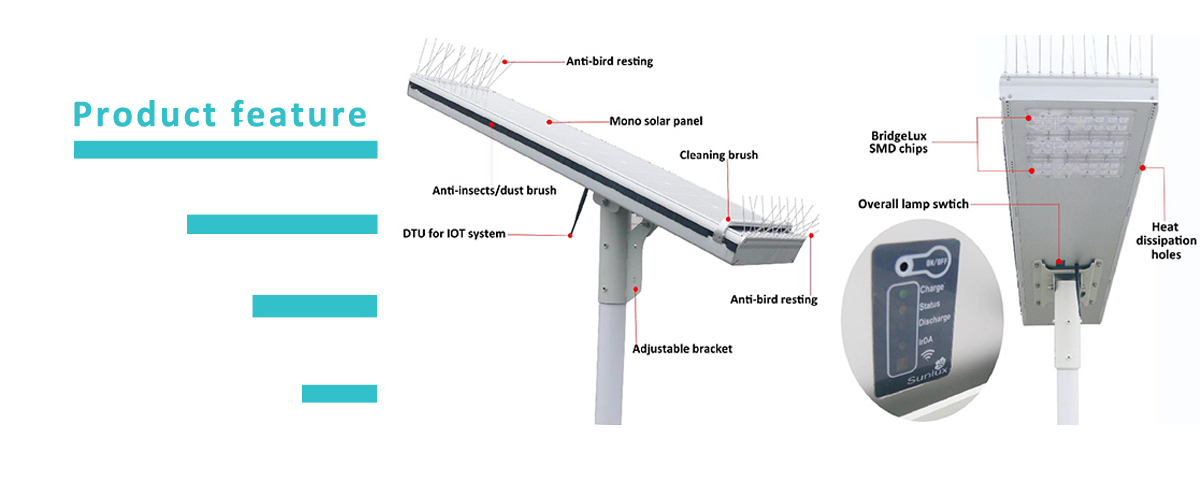

Product Details

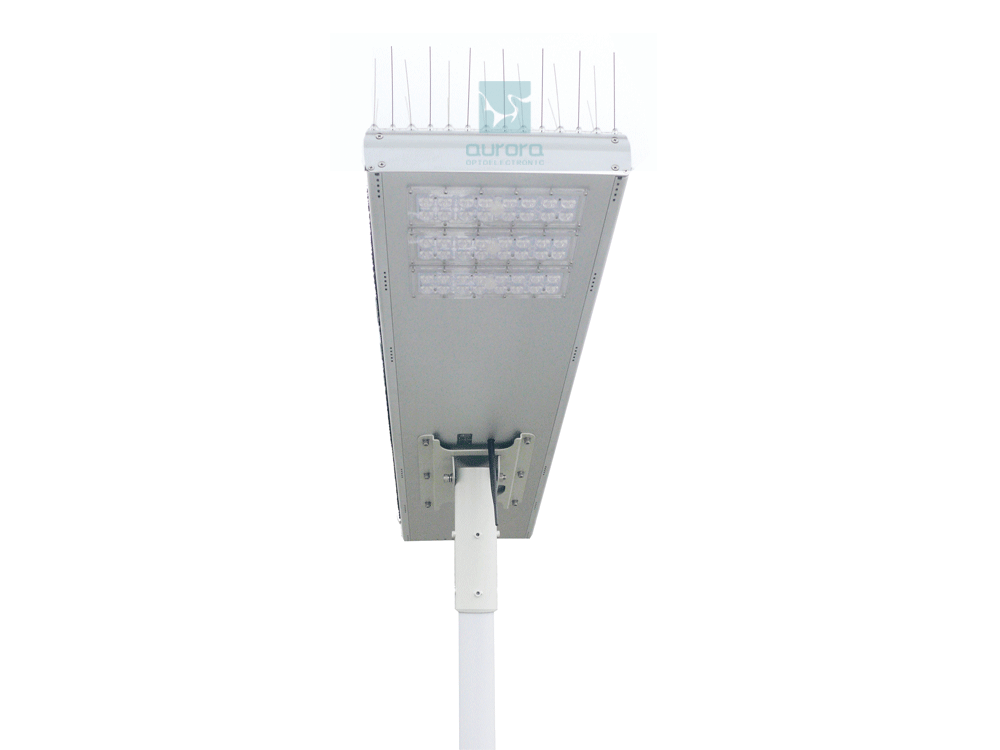

60w all in one solar street light with self cleaning system

· PIR/microwave/Bluetooth/IoT system for optional,

· Multiple installation methods,

· Energy saving, individual battery pack,

· Adjustable bracket

60w all in one solar street light with self cleaning system

· LED solar street lights
