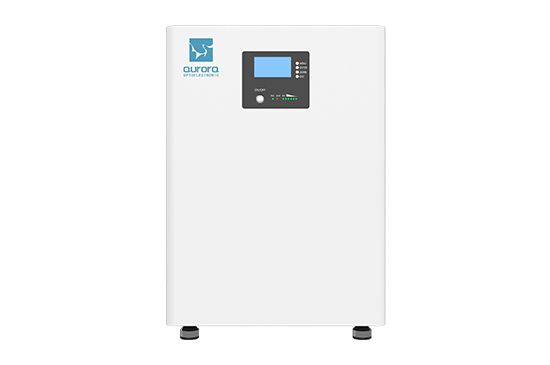

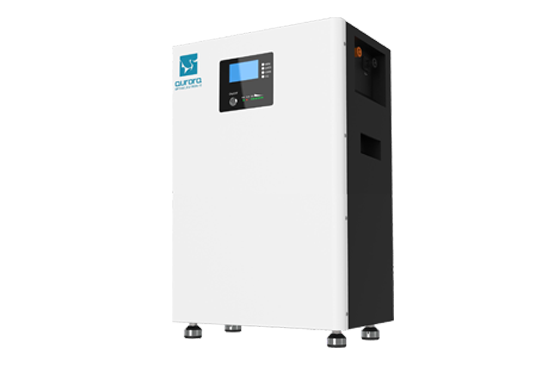

off grid solar power system 10.5KWH lithium battery pack

Model NO. YF-LFP-10.5KWH

10.5KWH lifepo4 battery capcity, 51.2v 206ah capacity, ≥8000cycles, 6years warranty, brand new grade A lifepo4 battery cell

INQUIRY NOW

< >

Main Features

Support on/off-grid

Safe & Reliable: Lithium Iron Phosphate (LFP)

Easy installation. Flexible communication WLAN, Ethernet, 4G

Parameter

Model	YF-LFP-10.5KWH
Capacity	10.5KWH
Voltage	48V
Nominal voltage	51.2V
Nominal voltage range	44.8-57.6V
Charge cut-off voltage	57.6V
Discharge cut-off voltage	44.8V (Recommend discharge cut-off voltage = 46V)
Max. Charge & discharge current	110A@5s
Recommend Charge & discharge current	100A
Nominal Output power	10547Wh
Discharge DOD	90%
Communication Port	RS232/RS485/CAN
Communication Mode	WIFI / BLUETOOTH
Ingress protection	IP20
Cycle times	≥8000 @25℃
Working temperature	-10℃~50℃
Warranty	6 years
Battery Cell Material	Lithium (LiFePO4)
Certification	CE, IEC62619(Cell&Pack),UL1973,CEC,UN38.3

Product Details

Application
