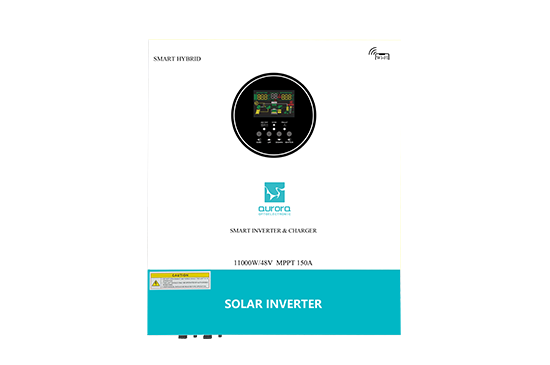

Aurora 11kw High Frequency Solar Inverter

Model NO. YF-FS-HP 11048

INQUIRY NOW

< >

Main Features

 Pure sine wave solar inverter(on/off Grid)

 Output power factor 1.0;

 Built-in Lithium battery automatic activation.

 Smart battery charge design to optimize battery life.

 Built-in anti-dust kit for harsh environment.

Parameter

Model	YF-FS-HP 11048
Input Formation	L+N+PE
AC Input	220/230/240VAC
Input Voltage Range	90-280VAC+3V(Normal Mode)185-264VAC+3V(UPS Mode)
Frequency	50/60Hz(Adaptive)
Rated Power	11000W
AC Output Power	11000W
Load Cut Off Voltage	44V
Load Return Voltage	52V
Output Voltage(AC)	220/230/240VAC
Output Frequency	50/60Hz
Output wave	Pure Sine Wave
Peak Power	22000VA
Grid Voltage Range	195-253VA
Output Current	47.8A
Rated Voltage	48VDC
Constant Charging Voltage	56.4VDC
Float Charging Voltage	54V
PV Charging Method	MPPT
Max PV Input Power	2*5500W
PV Input Voltage Range	90-500VDC
MAX PV Input Voltage	500VDC
MAX PV Input Current	18/18A
MAX PV Charge Current	150A
MAX AC Charge Current	150A
MAX Charge Current	150A
Parallel Interface	Support Parallel
Operating Temperature	-10°C~50°C

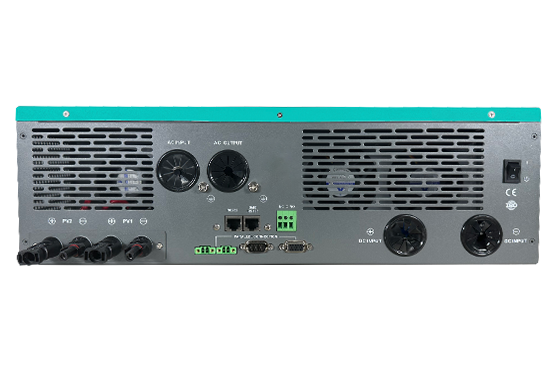

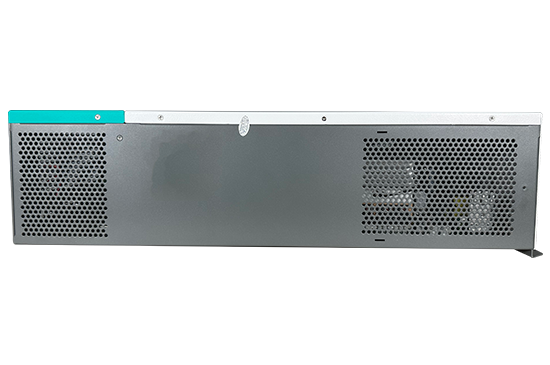

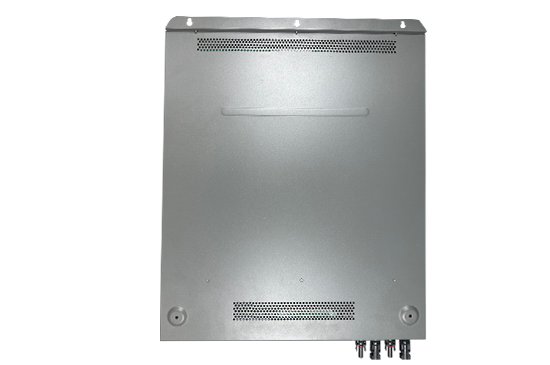

Product Details

Application
