6.5KWH solar systems off grid complete house home solar systems

Model NO. YF-LFP-6.5KWH

solar system off grid 6.5KWH, brand new grade A lifepo4 battery, >6000cycles, 6years warranty; fast delivery time.

INQUIRY NOW

< >

Main Features

Nomin

 Safe and Long life cycle, the cell belongs to lithium iron phosphate power cell which can be recycled more than 5000 times.

 Intelligent BMS, intelligent battery protection system make the battery more stable and safer.

 Comprehensive compatibility, It is better suited for off-grid inverters and hybrid inverters.

al VoNominal Voltage:51.2Vltage:51.2V

Parameter

Model	YF-LFP-6.5KWH
Capacity	6.5KWH
Voltage	48V
Nominal voltage	51.2V
Nominal voltage range	44.8-57.6V
Charge cut-off voltage	57.6V
Discharge cut-off voltage	44.8V (Recommend discharge cut-off voltage = 46V)
Max. Charge & discharge current	100A
Recommend Charge & discharge current	80A
Max Output power	6500Wh
Discharge DOD	90%
Communication Port	RS485/CAN
Communication Mode	WIFI / BLUETOOTH
Ingress protection	IP20
Cycle times	>6000 @25℃
Working temperature	Discharge:-20~45℃ Charge:0~45℃
Warranty	6 years
Battery Cell Material	Lithium (LiFePO4)
Certification	CE, IEC62619(Cell&Pack),UL1973,CEC,UN38.3

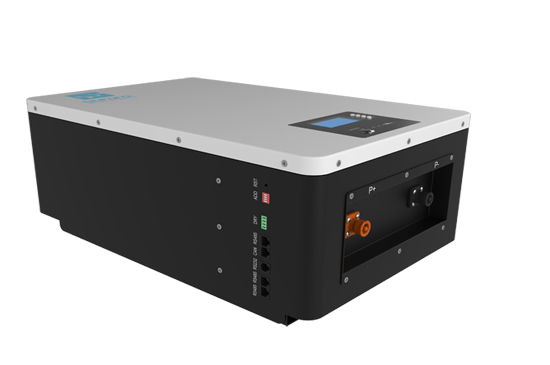

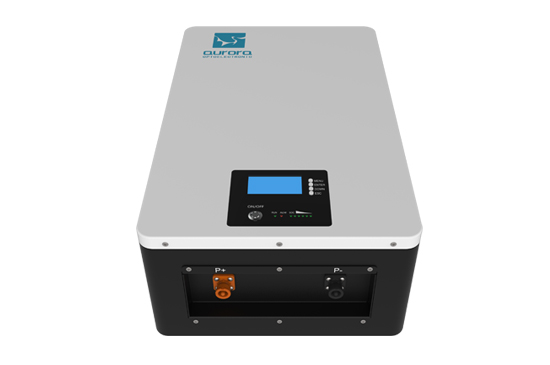

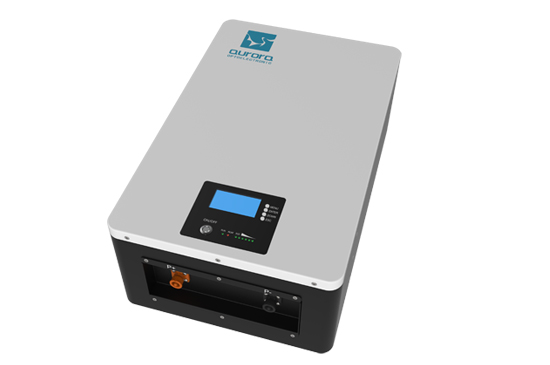

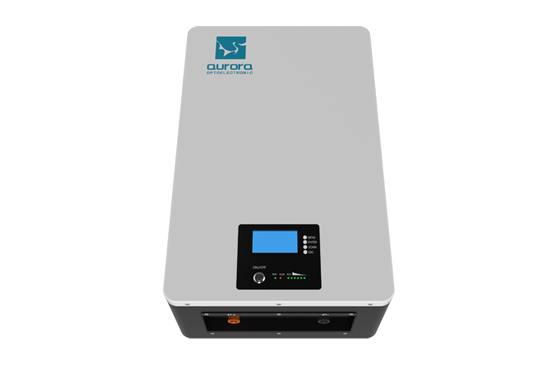

Product Details

Application

INQUIRY NOW!
