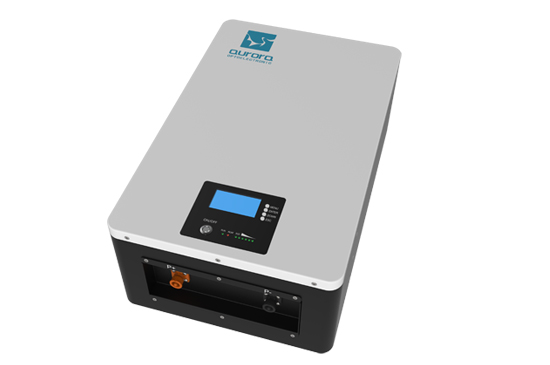

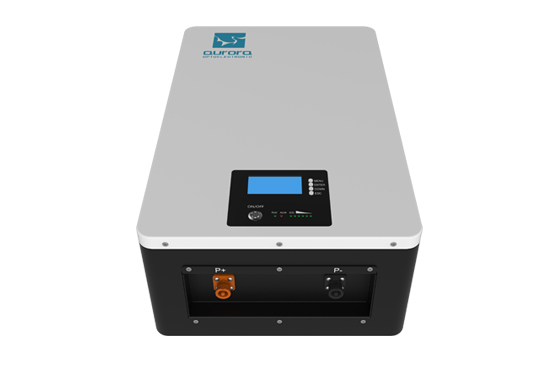

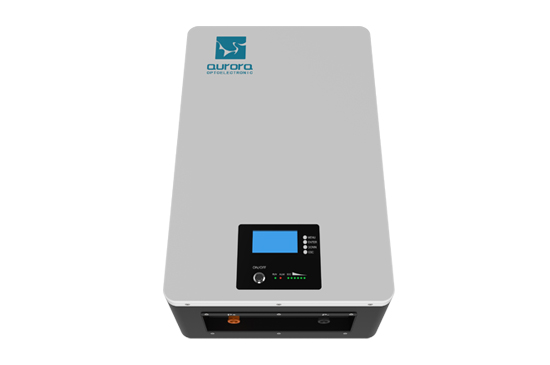

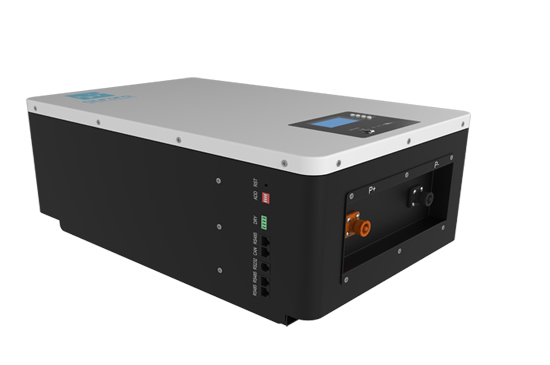

5KWH home solar light kit lithium battery pack for off grid system

Model NO. YF-LFP-5KWH

lithium battery pack, use for solar off grid home system

INQUIRY NOW

< >

Main Features

 Safe and Long life cycle, the cell belongs to lithium iron phosphate power cell which can be recycled more than 5000 times.

 Intelligent BMS, intelligent battery protection system make the battery more stable and safer.

 Comprehensive compatibility, It is better suited for off-grid inverters and hybrid inverters.

Parameter

Model	YF-LFP-5KWH
Capacity	5KWH
Voltage	48V
Nominal voltage	51.2V
Nominal voltage range	44.8-57.6V
Charge cut-off voltage	57.6V
Discharge cut-off voltage	44.8V (Recommend discharge cut-off voltage = 46V)
Max. Charge & discharge current	100A
Recommend Charge & discharge current	80A
Max Output power	5120Wh
Discharge DOD	90%
Communication Port	RS485/CAN
Communication Mode	WIFI / BLUETOOTH
Ingress protection	IP20
Cycle times	>6000 @25℃
Working temperature	Discharge:-20~45℃ Charge:0~45℃
Warranty	6 years
Battery Cell Material	Lithium (LiFePO4)
Certification	CE, IEC62619(Cell&Pack),UL1973,CEC,UN38.3

Product Details

Application
