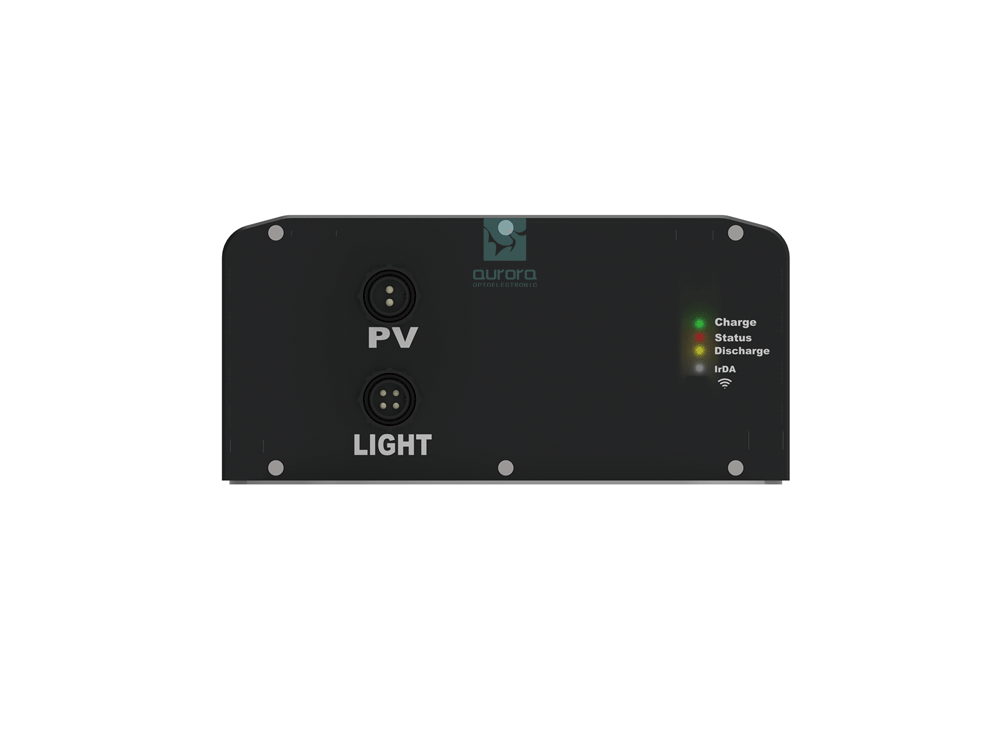

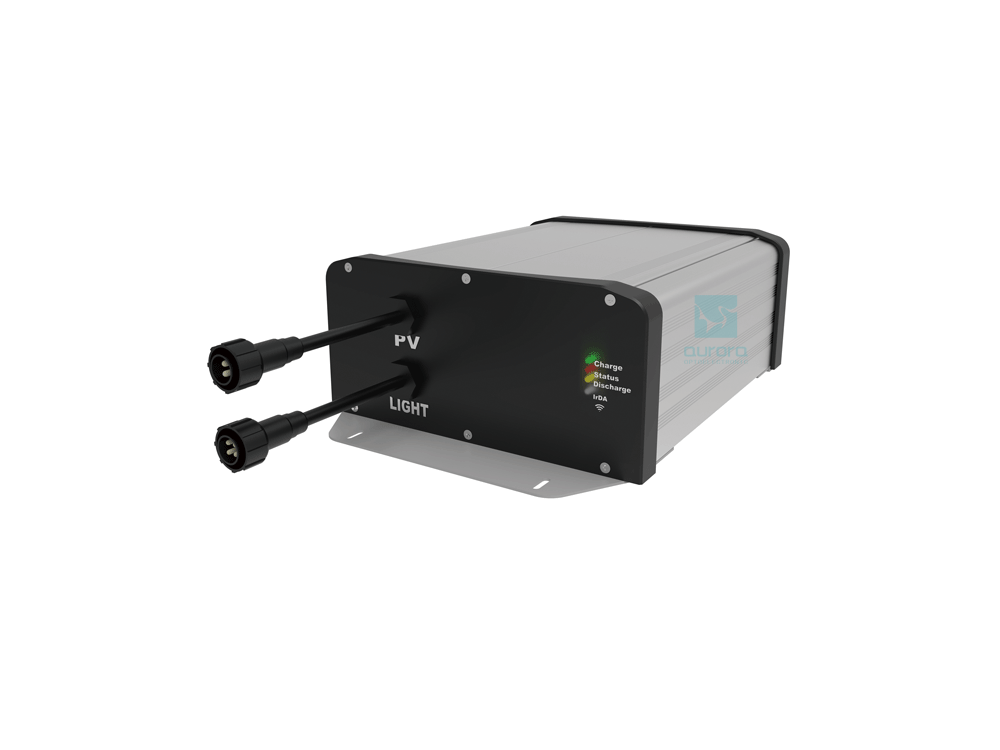

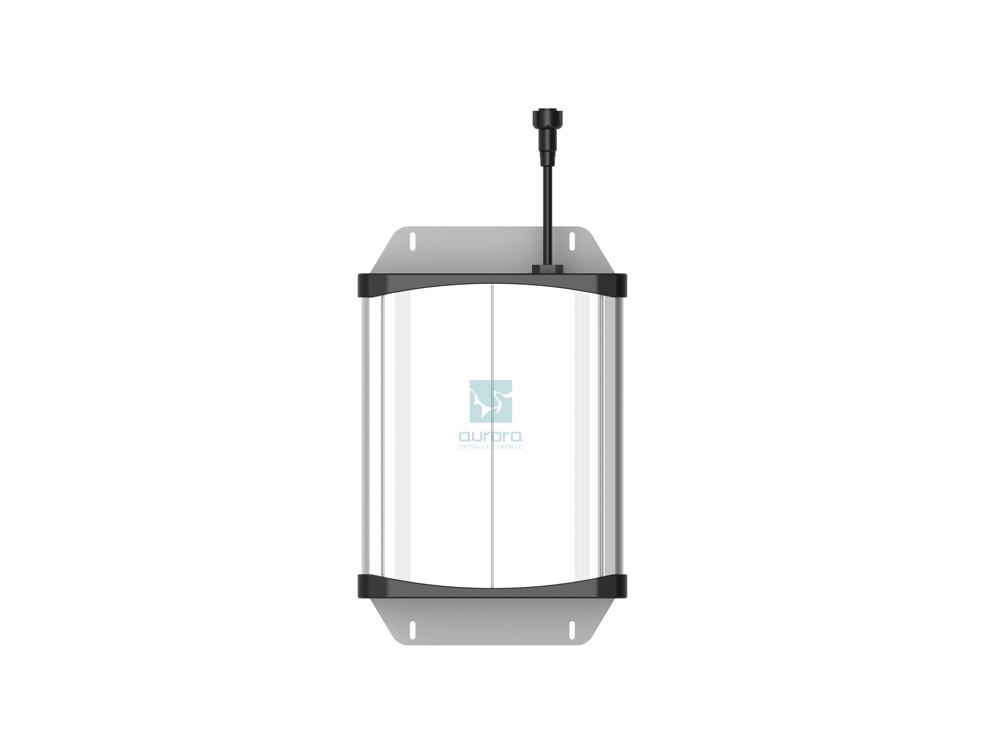

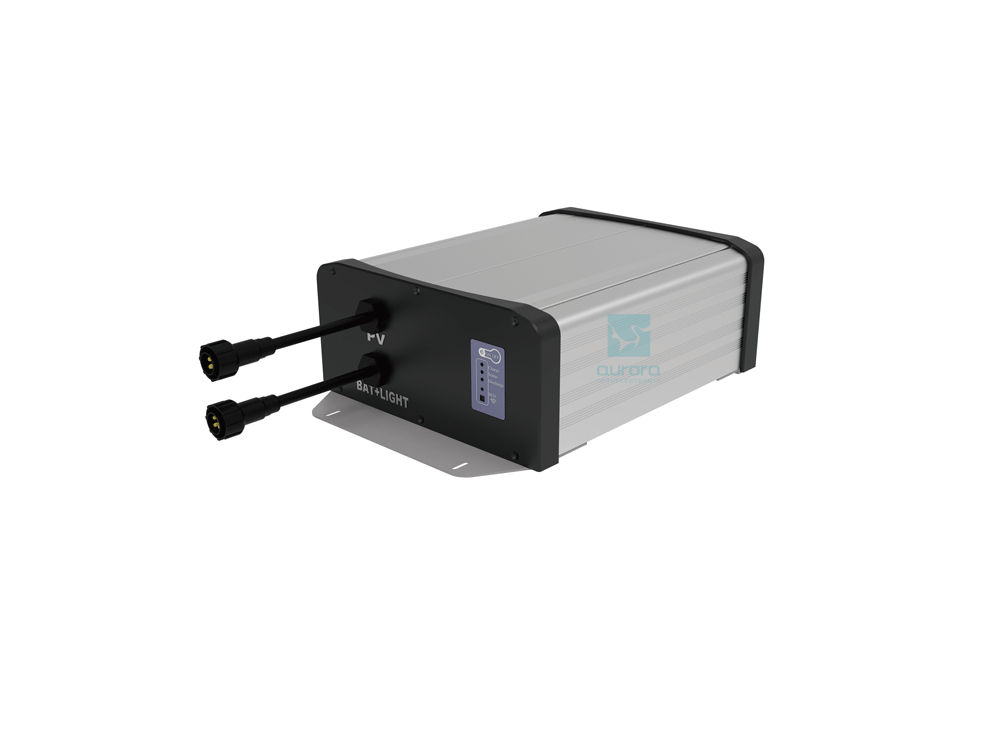

Solar street light Battery pack, energy pack, solar off grid system, IP65, bluetooth app...
INQUIRY NOW· The battery adopts power lithium iron phosphate battery, the cycle life is more than 3000 times, and it can be used for 5-8 years;
· MPPT controller, faster charging and better protection function;
· LED adopts patented adaptive function, only need to set power, automatically adapt to 5-17 strings of LED lamp beads
· All aluminum alloy shell, anodized surface, anti-corrosion, reliable structure, convenient installation;
· Bluetooth APP management, human-computer interaction is more intuitive, and the operation is convenient;
Model No. | YF-BP-101 | YF-BP-102 | YF-BP-103 | YF-BP-104 | YF-BP-105 |
Battery type | LiFePO4 | ||||
Battery capacity | 160WH | 288WH | 384WH | 576WH | 768WH |
Battery capacity | 15W | 20W | 30W | 40W | 40W |
LED voltage | 5V—35V | ||||
MPPT voltage | 10V≤Vmp≤25V | ||||
Charge model | MPPT | ||||
Charge current | 15A | 20A | 30A | ||
Solar panel input volts Max | Vmp≤25V | ||||
Communicate way | Pm≤80W | Pm≤100W | Pm≤150W | ||
Battery Tape | Bluetooth app | ||||
Working model | 12hrs (can be adjusted) | ||||
N.W(kg) | 3 | 4 | 4.5 | 6.5 | 7 |
G.W(kg) | 3.5 | 4.5 | 4 | 7 | 7.5 |
Demension(mm) | 260*245*86mm | ||||
Ctn size(mm) | 320*285*120mm | ||||
Working temperature(℃) | -20℃ --- +65℃ | ||||
IP grade | IP65 |
energy battery packs energy storage battery packs 3.2v system for solar street lights
· Solar street light Battery pack,
· Energy pack,
· Solar off grid system,
· IP65,
· Bluetooth app
energy battery packs energy storage battery packs 3.2v system for solar street lights
· LiFePO4 battery pack solar system
