All-in-one solar street light supplier, 30w integrated design and CCTV camera

Model NO. YF-EIF-30W-CAM

2 megapixels pixel; 6mm lens size; MTV/CS lens interface; 1.0V/Lux-sec(550nm) Sensitivity; 32G TF Card (64G/128G optional) Storage; WIFI/4G/HOTPOT interface;

INQUIRY NOW
Main Features

Ten years of industry experience

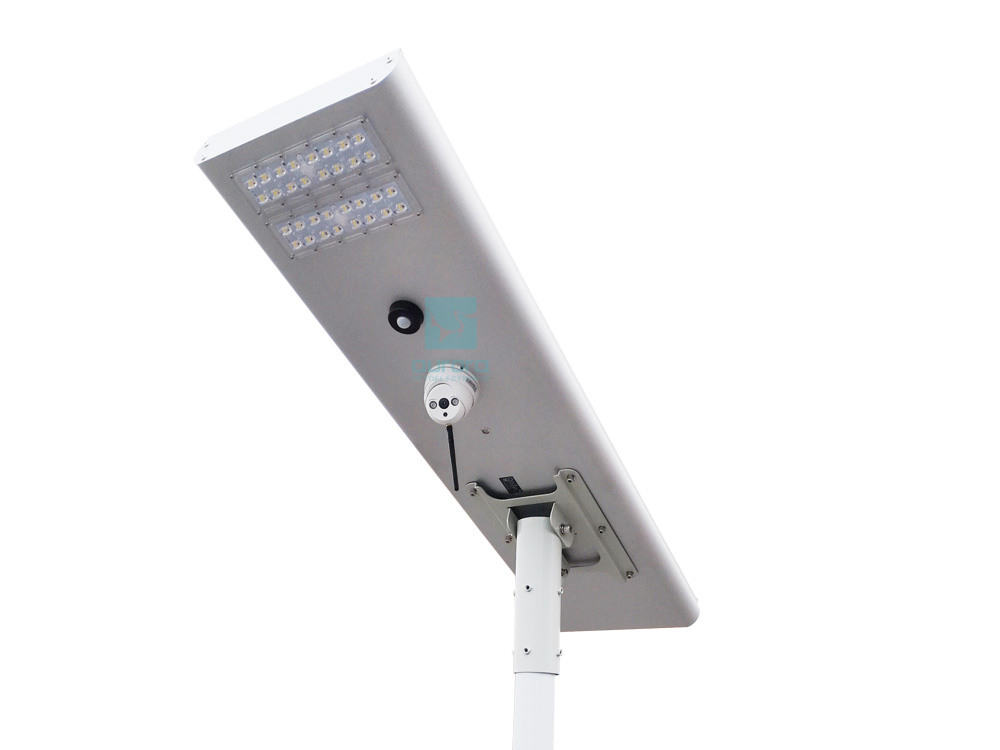

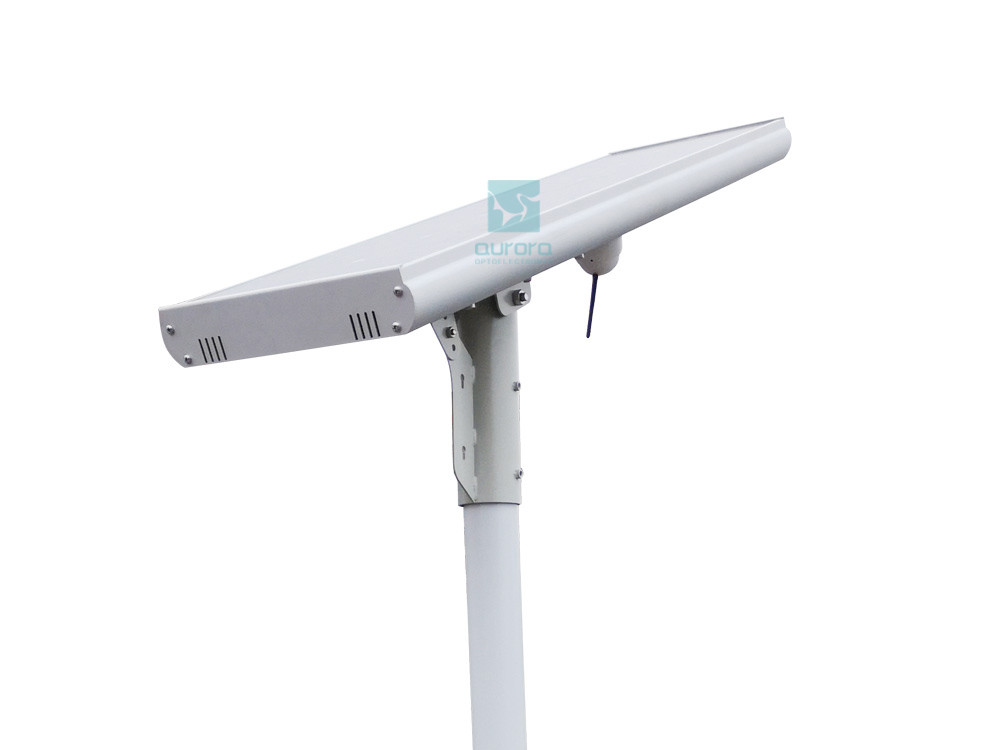

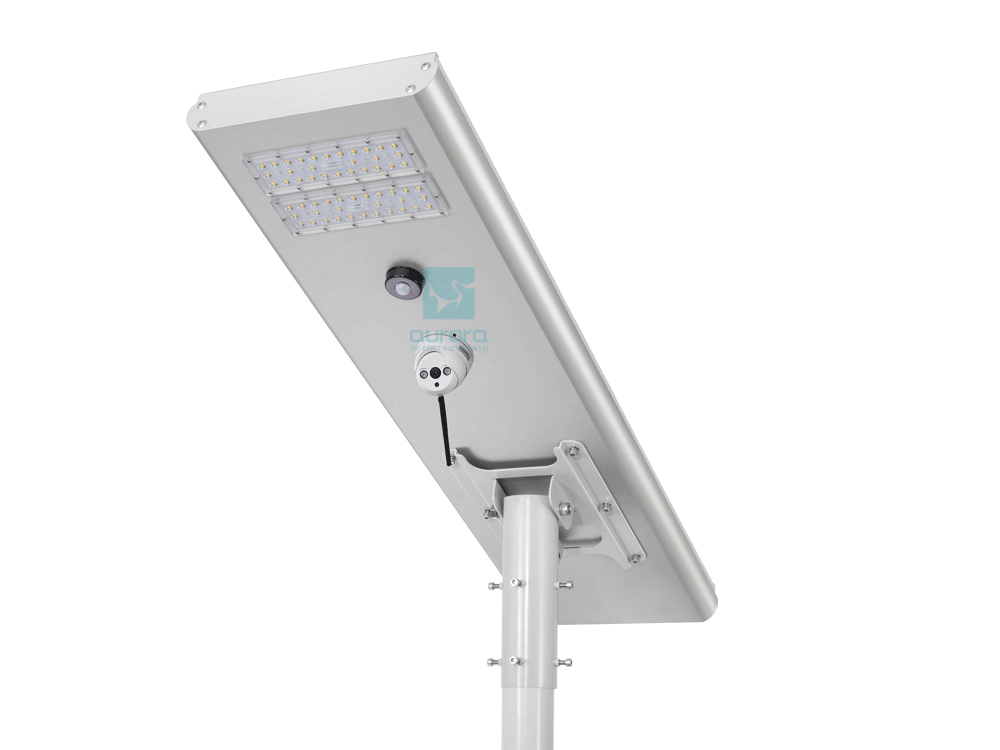

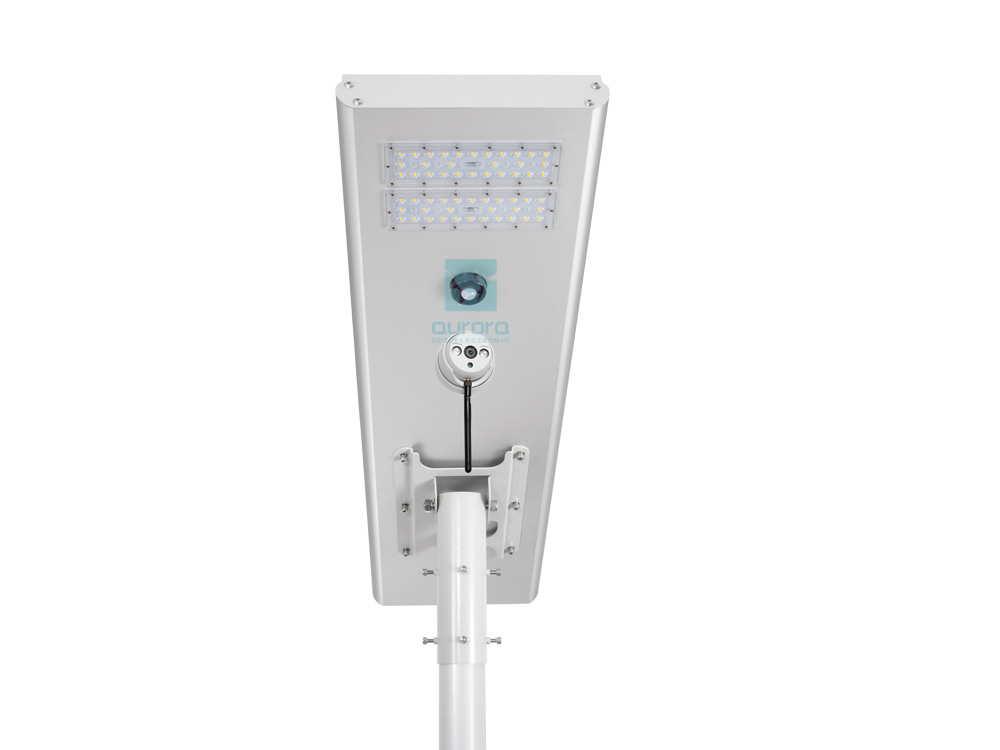

All in one solar street light 30w integrated design with CCTV camera

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.

· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w

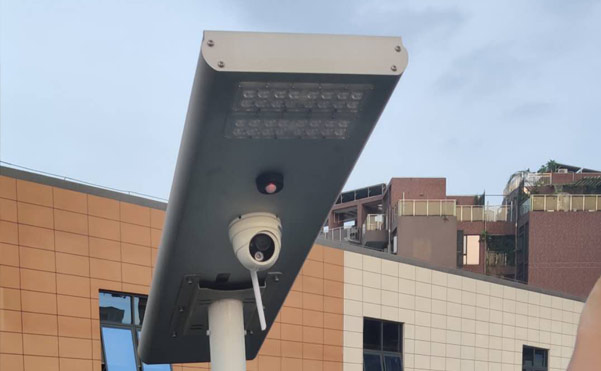

· With CCTV camera, real time monitoring from PC or Mobile

· HQ Color Images & Video Monitor on Day/Night Time;

· Motion activated lighting

· Cloud Storage & Build-in SD Card ,SD Card Max 128GB

· Advanced Motion Detection to capture images& video

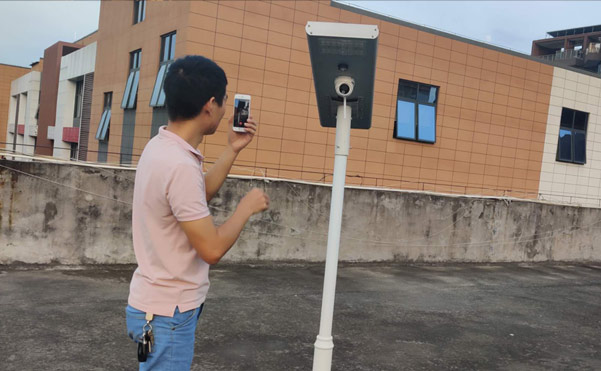

· Free App, Send message and monitor in real time

· Camera and lighting integration, monitoring lighting both

· Solar power,No wire needed,No power supply needed.


CCTV camera spec

· 2 megapixels pixel;

· 6mm lens size;

· MTV/CS lens interface;

· 1.0V/Lux-sec(550nm) Sensitivity;

· 32G TF Card (64G/128G optional) Storage;

· WIFI/4G/HOTPOT interface;

· Supporting Device Version: Android;

· DC12V/1.0A(MAX) power supply;

· Mobile phone APP use for free, easy to use...



Parameter
Item NO.YF-EIF-CAM- 30W
Solar Panel Max Power18V 90W
Lifespan25 years
BatteryTypeLiFePO4 battery  12V 36AH
Lifespan8-10 years
LED SourceMax Power12V 30W
Led Chip BrandBridgeLux LED
Luminous Flux3000Lm
Lifespan50,000hrs
Color Temperature2700-6500K
CRI >75Ra
Beam Angle140x70°
CCTV CameraPixel2 megapixels
Lens size6mm
Lens InterfaceMTV/CS
SensitivityAvailable
Storage32G TF Card (64G/128G optional)
InterfaceWIFI
SafetyPassword protection
Power supplyDC12V/1.0A(MAX)
Working time24 hours
Charge TimeBy Strong Sunshine6-8 hours
Lighting TimeFull Power12-14hours
30% saving mode39 hours (3~5 rainy days)
Environment ParameterDischaring temperature-20 ℃ to +60 ℃
Charging Temperature0 ℃ to +60 ℃
Storage temperature-20 ℃ to +45 ℃
InstallationMounting Height4-6m
Space Between Lights

18-20m

MaterialSuperior aviation aluminum AL6063-T5
CertificationCE RoHs
IP RatingIP65
Warranty 3 years

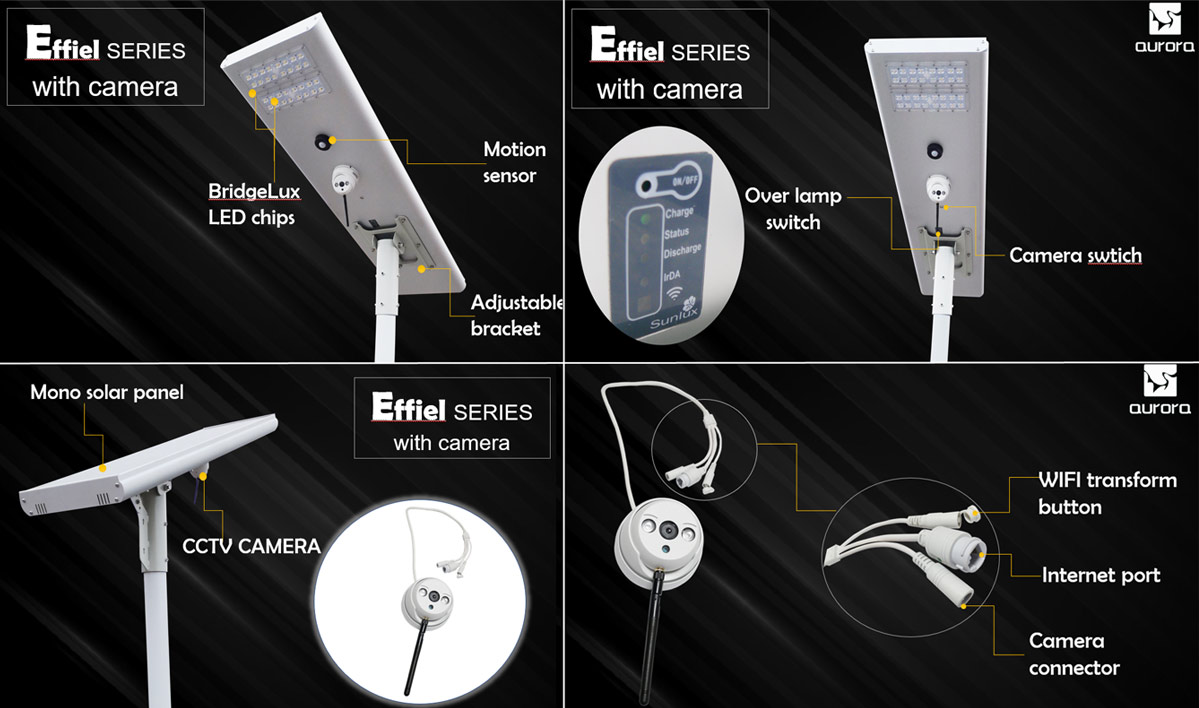

Product Details

solar street light

our companyOur honorOur exhibitionOur transportation service

FAQ:

Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.



Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.



Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.



Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.





Q: are your manufacturer? how about your production capacity and delivery lead time?

A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.



Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.



Q: do you help installation, maintenance and commissioning?

A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.
