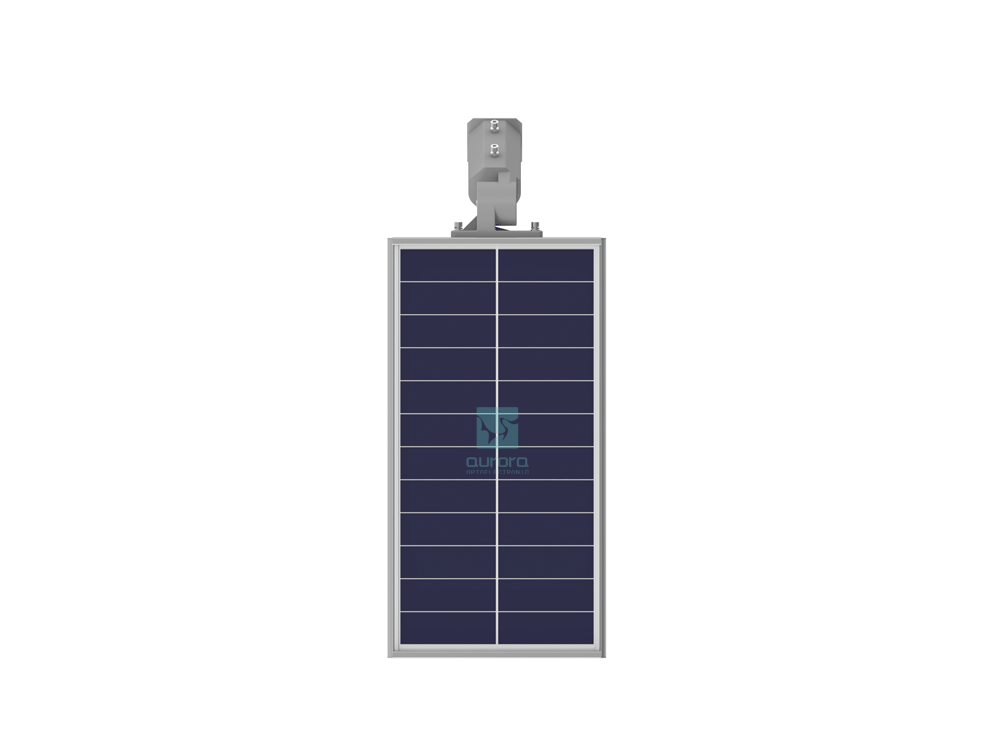

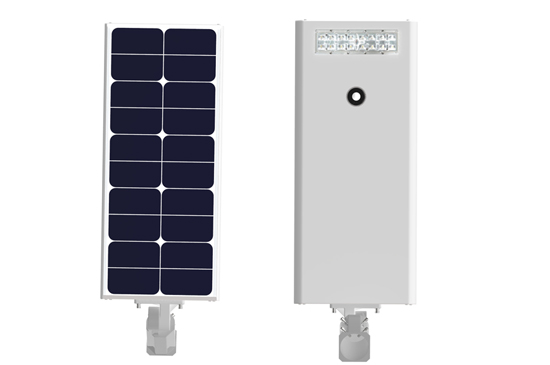

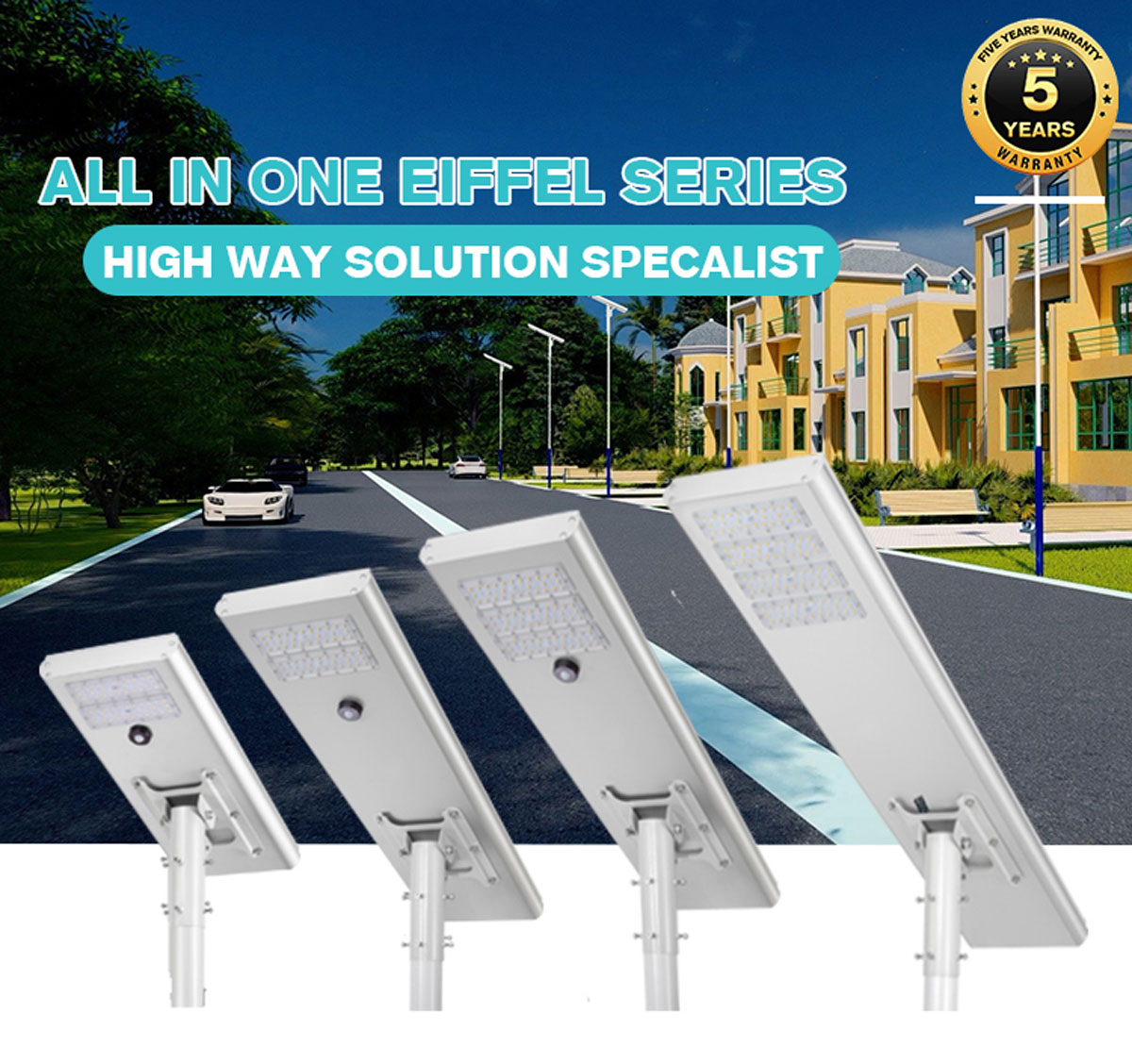

solar walkway light, solar path lights outdoor, all in one integrated design, economic product, adjustable bracket...
INQUIRY NOW30w integrated solar walkway light all in one solar path lights outdoor
· 365days light on, turn on/off automatically

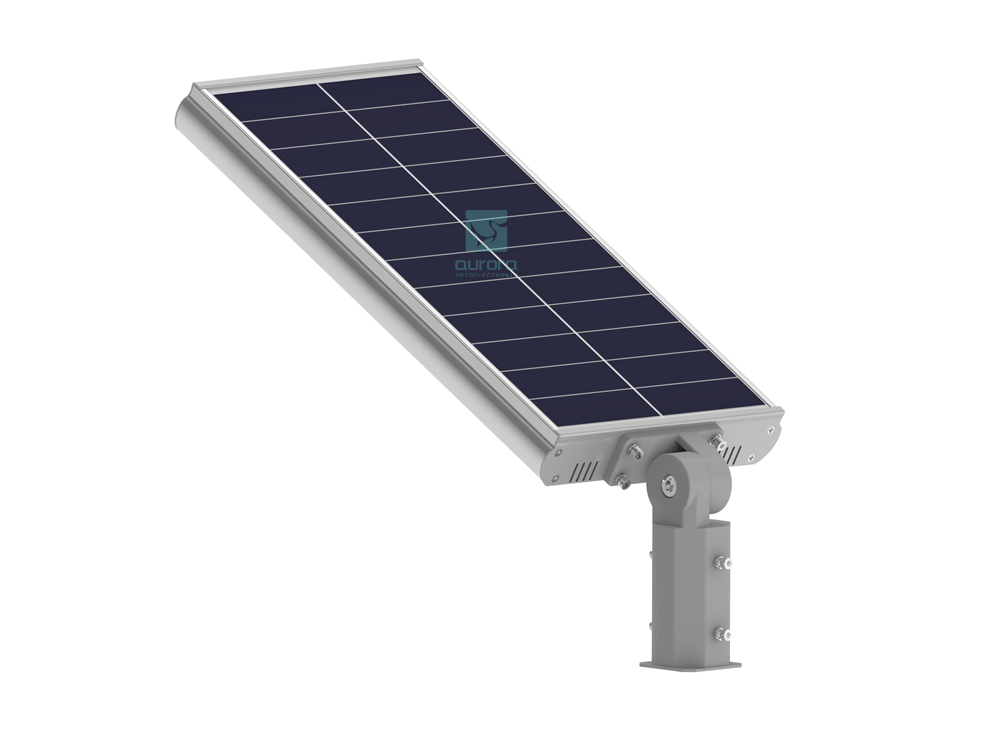

· adjustable bracket, adjust the solar panel angle to get best sun radiation.

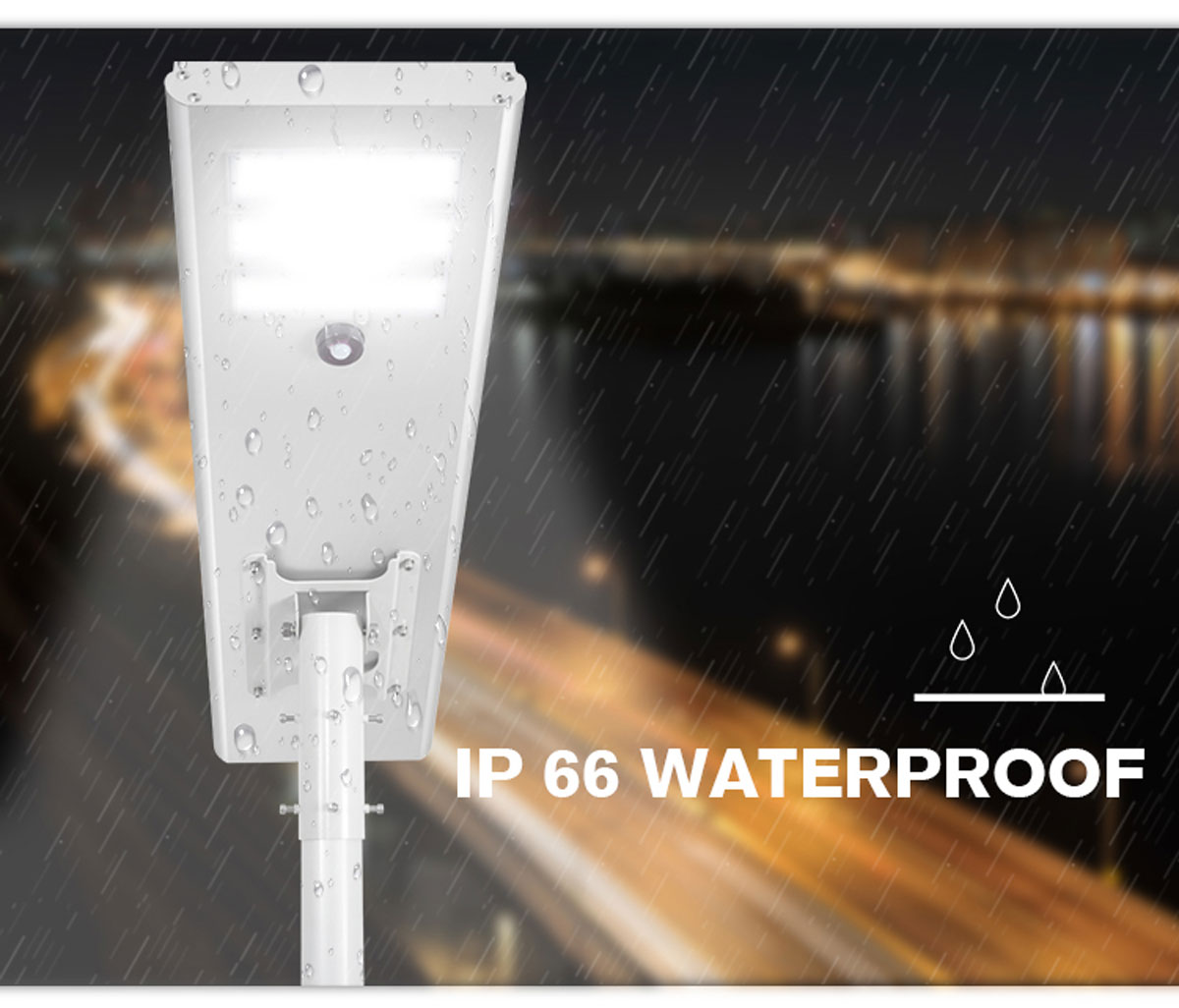

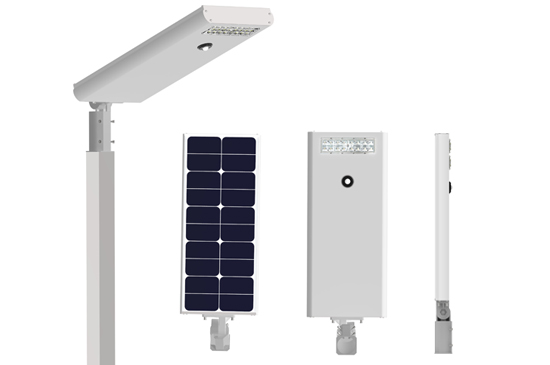

· all in one integrated design, waterproof IP65
· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.
· 365days light on, turn on/off automatically

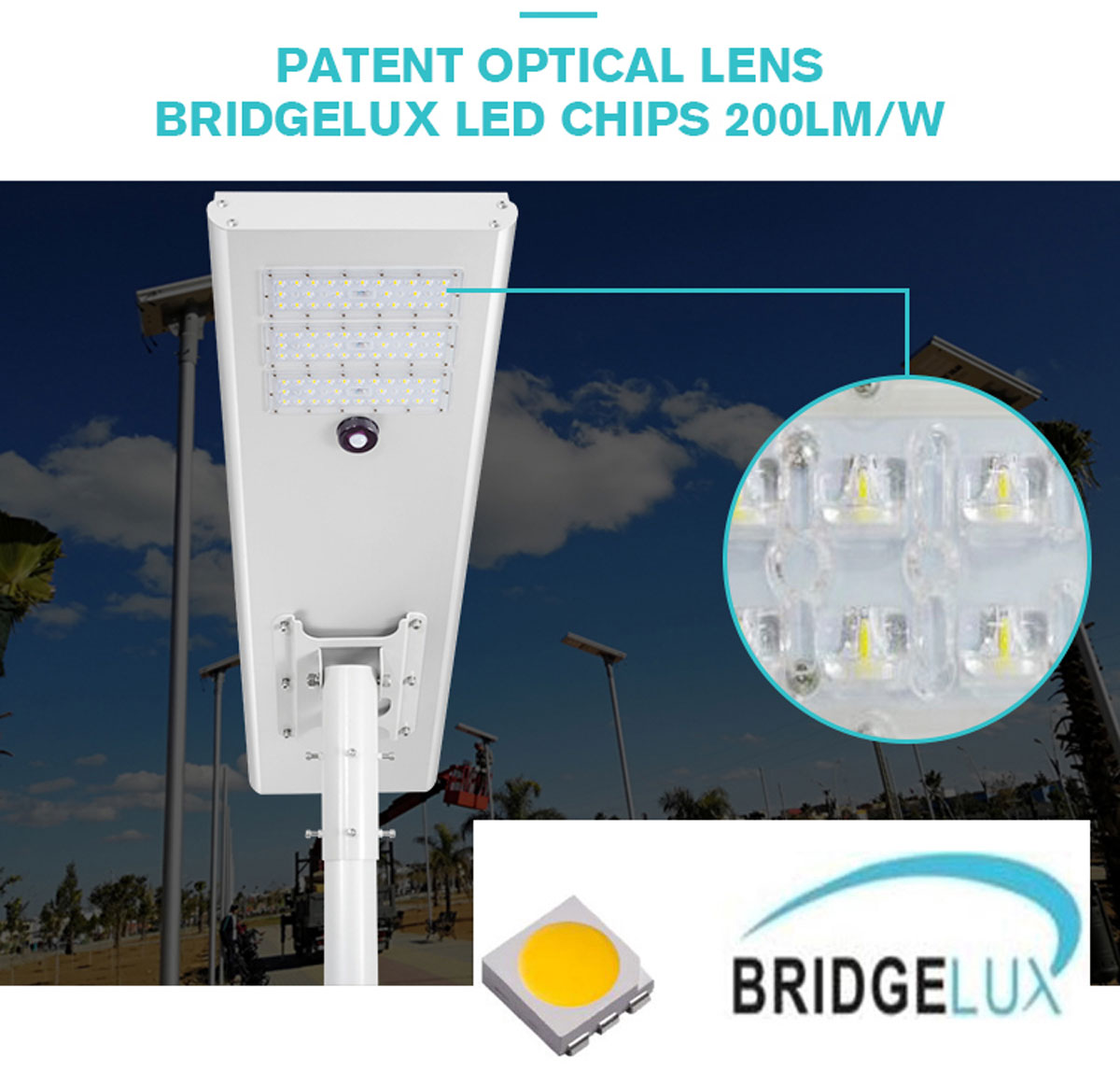

· Amazing lighting effect with high brightness chips.

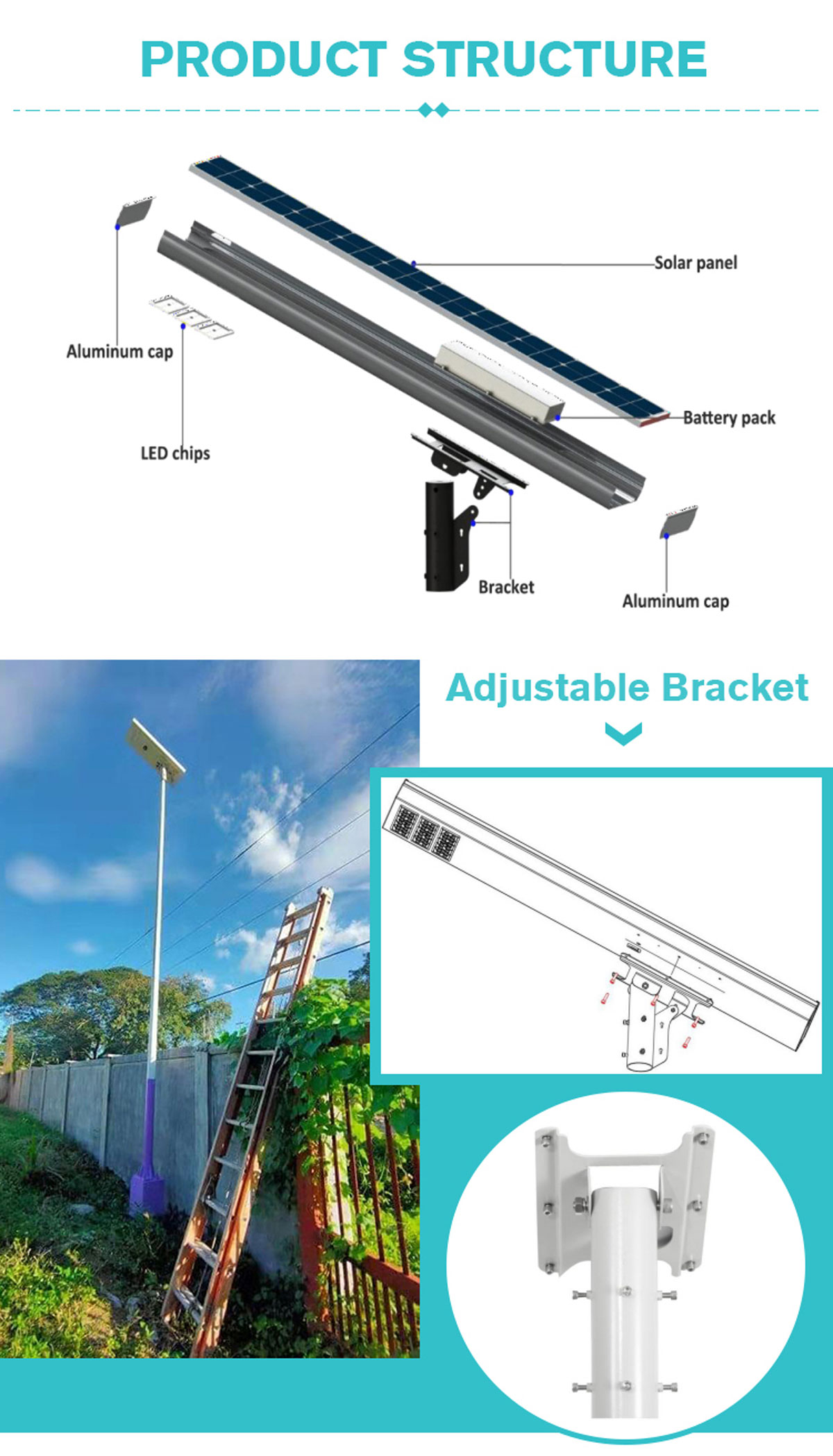

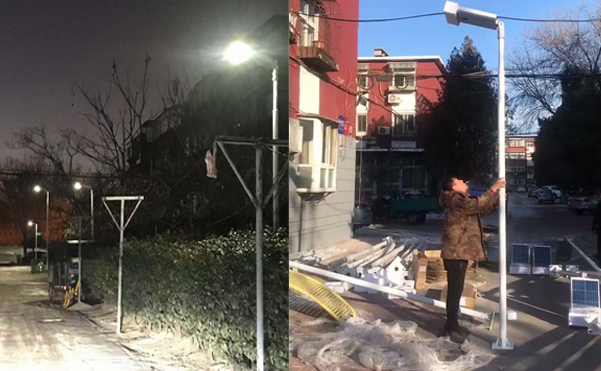

· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.
Model | YF-ELM-20W | YF-ELM-30W | YF-ELM-40W |
LED Street Light Power | 20W | 35W | 40W |
PV Model | 30W | 40w | 50w |
Light Efficiency | 100lm/w | 100lm/w | 100lm/w |
LED Chip | 3030 LED SANAN | 3030 LED SANAN | 3030 LED SANAN |
Light Distribution Type | Type II | Type II | Type II |
Viewing Angle | 140 x 70° | 140 x 70° | 140 x 70° |
CRI | >70 | >70 | >70 |
Lifetime | >10 years | >10 years | >10 years |

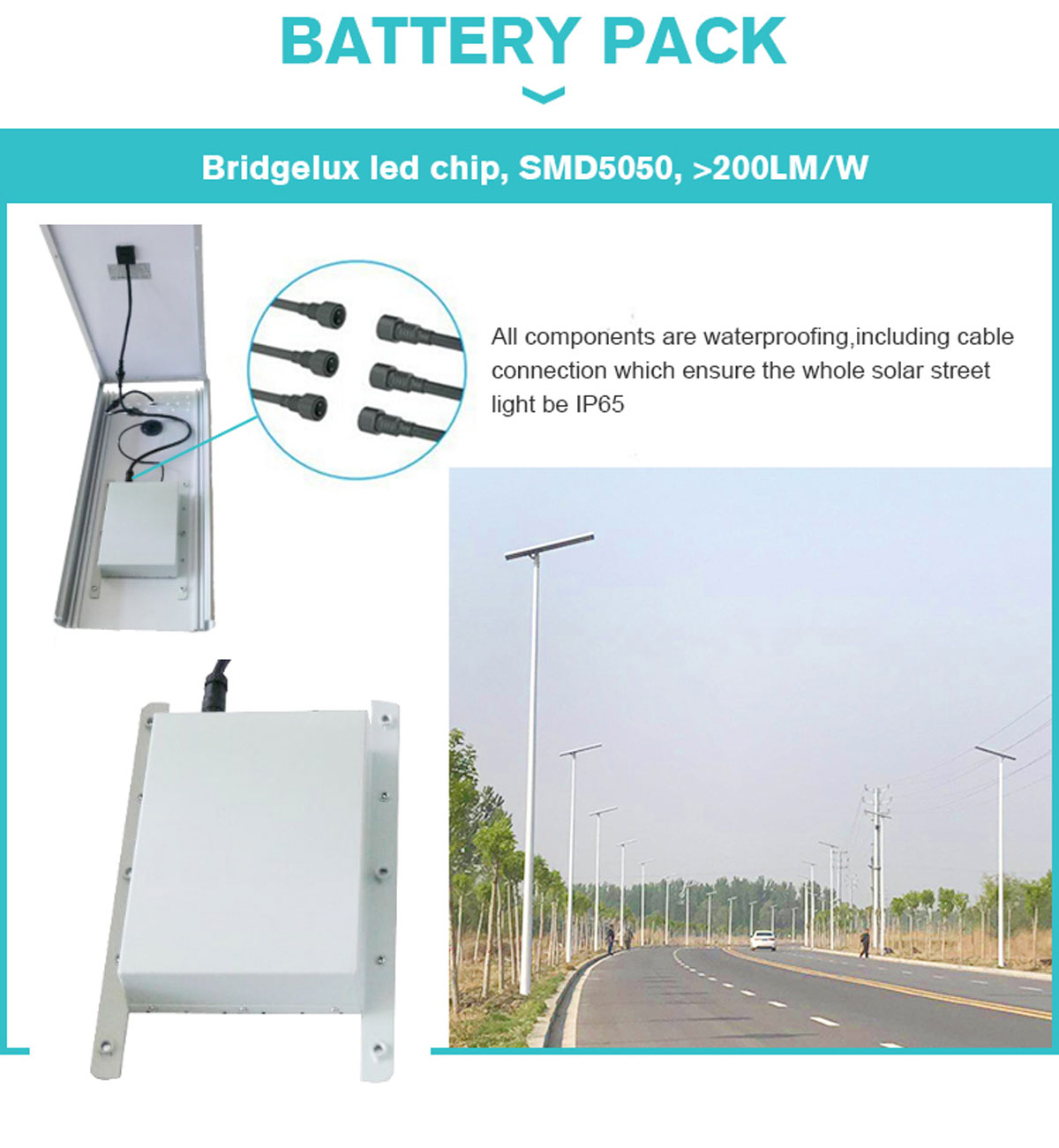

Battery Tape | LiFePO4 Battery | LiFePO4 Battery | LiFePO4 Battery |
Battery Capacity | 160WH | 192WH | 230WH |
Battery life time | (5-8 years) | (5-8 years) | (5-8 years) |

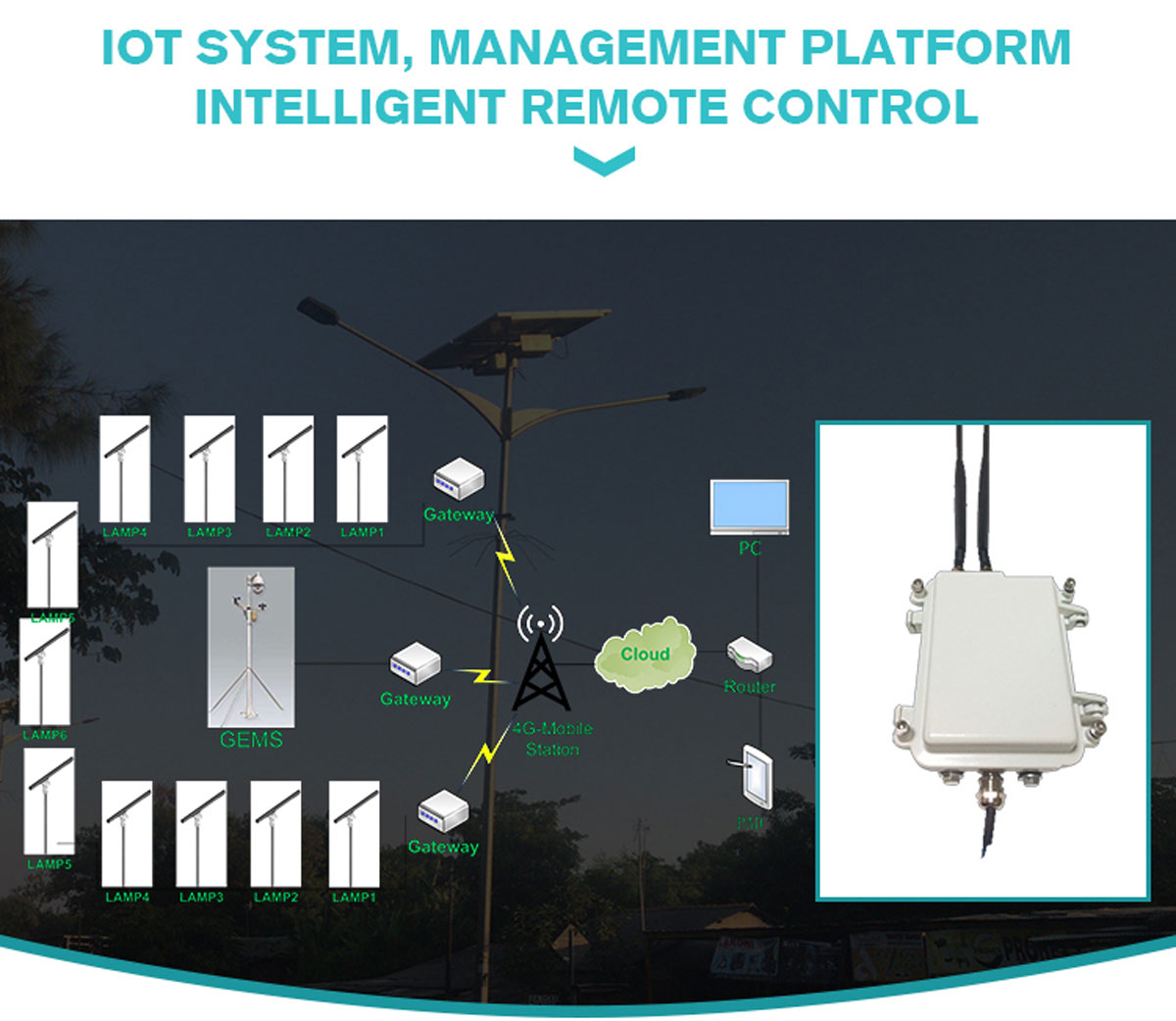

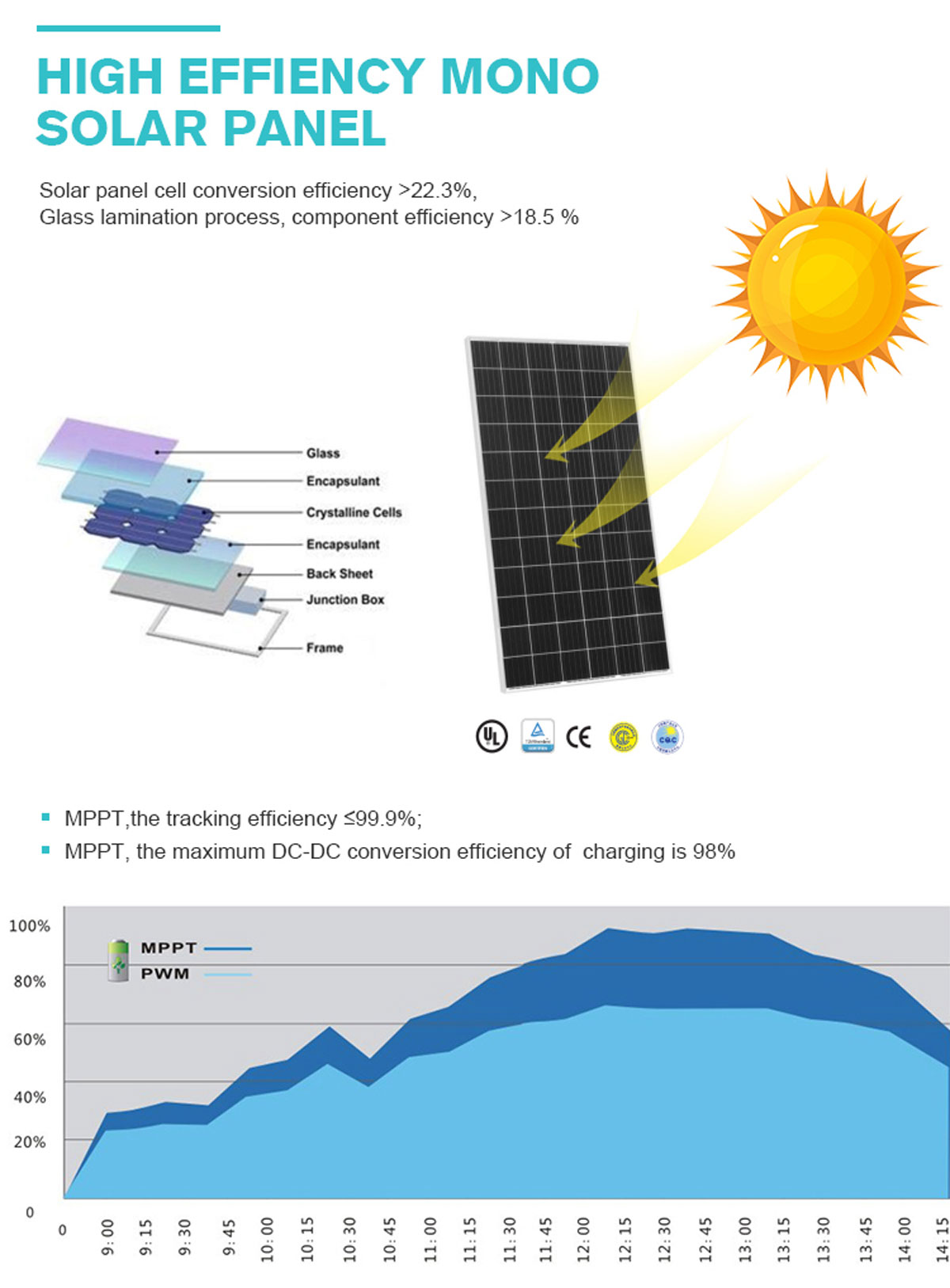

MPPT Change Controller | Including Wireless Communucation Module | Including Wireless Communucation Module | Including Wireless Communucation Module |
Timing Mode | Interllingent Control | Interllingent Control | Interllingent Control |
Bluetooth Function | YES | YES | YES |
Circuit Protection | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions |
Life Time | 8years | 8years | 8years |
Charging Time(STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) |
Certificate | CE、ROSH、IP65 | CE、ROSH、IP65 | CE、ROSH、IP65 |
Storage Temperature | 0℃~45℃ | 0℃~45℃ | 0℃~45℃ |
Protection Grade | IP65 | IP65 | IP65 |

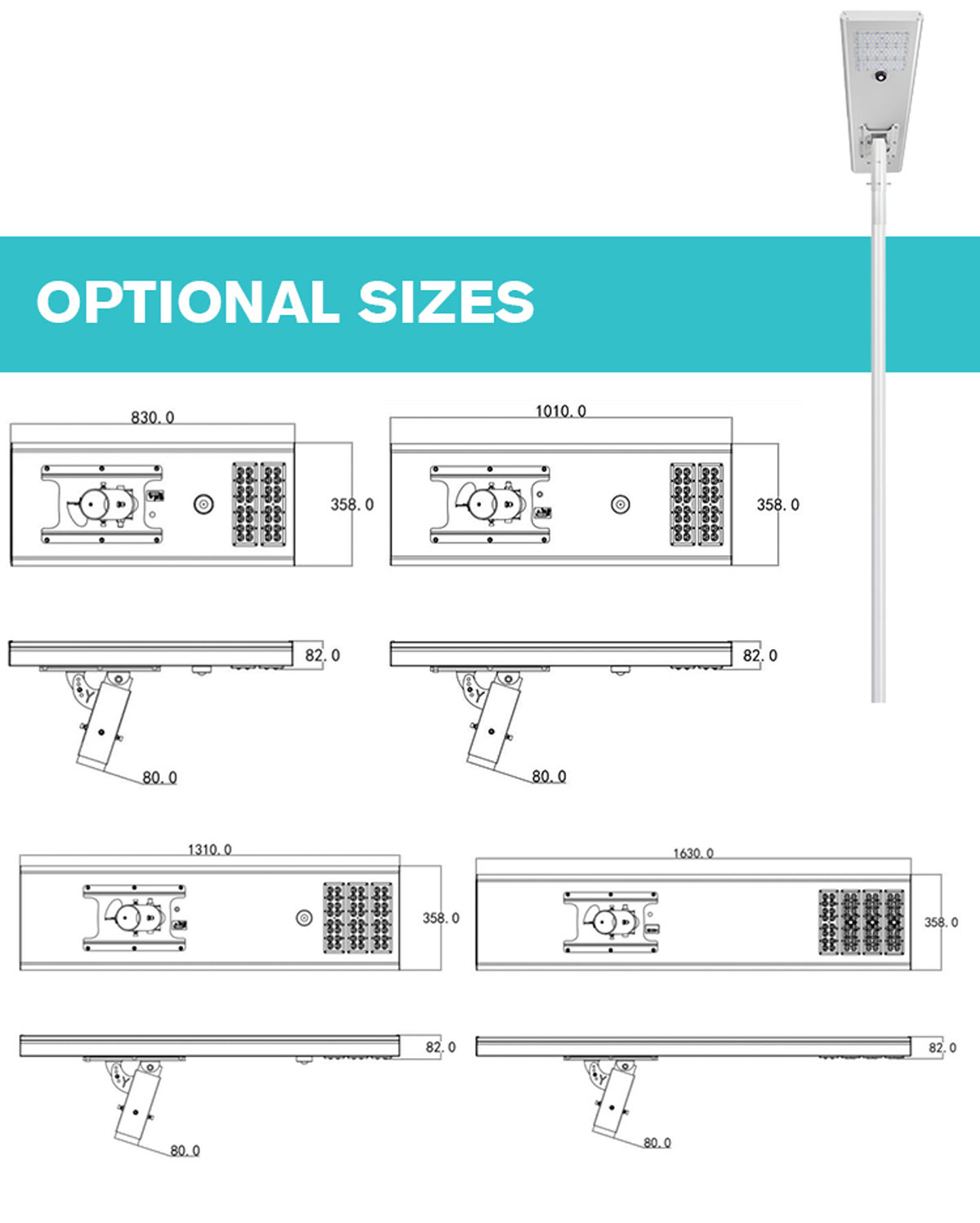

Dimension Size(mm) | 585*358*72.5mm | 685*358*72.5mm | 830*358*72.5mm |
Installation Height | 4M to 6M light pole | 4M to 7M light pole | 4M to 8M light pole |
Installation Diameter | ≤60mm | ≤60mm | ≤60mm |
Warranry | 3years | 3years | 3years |
FAQ:
Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.
Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.
Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.
Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.
Q: are your manufacturer? how about your production capacity and delivery lead time?
A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.
Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.
Q: do you help installation, maintenance and commissioning?
A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.
