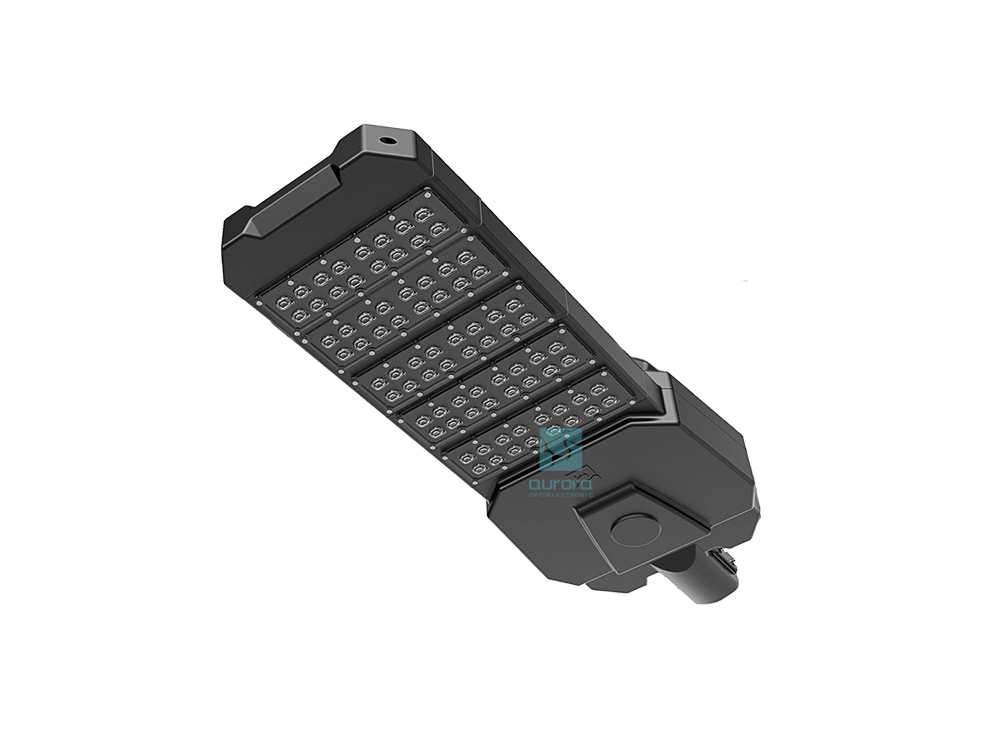

200w high power led street light modular design led lamp

Model NO. YF-SL-150W

LED street light patent design, AC-powered, 100v-277v, IP65 waterproof, alloy aluminum body, 160lm/w, SMD led modular structure..

INQUIRY NOW

< >

Main Features

· Patented spaceship alloy aluminum body design, mix and match into different size and power.

· Adopt modular lens light source, energy saving 65% more than traditional lamp based on same power.

· Individual led light source, more convenient for replacement.

· High energy efficiency, 70% energy saving more than traditional lamp based on same lux.

· Super long lifespan, up to 50,000hours.

· Soft lighting, No UV or IR.

· Eco-friendly, No Merury or Xenon.

· High quality constant current driver, no flicker, better to protect human eyes.

· High quailed Bridgelux led chips, high lumen efficiency, high CRI.

· Integrated lamp heat sink, 100% heat dissipation.

· IP Grade: IP65.

Parameter

MODEL		YF-SL-120W	YF-SL-150W	YF-SL-200W	YF-SL-240W
LED stree light power		120W(3LED Module)	120W(4LED Module)	200W(5LED Module)	240W(6LED Module)
Driver	Rated input voltage range	100Vac—277Vac
	Input voltage	90-305Vac
	Input frequency range	50/60HZ
	Power factor	0.95-0.98（220Vac/50HZ full load）
	Max Input current	1.8A（100Vac full load）		2.4A（100Vac full load）	2.8A（100Vac full load）
	Output current	22V-56V
	Output voltage	2.7A-4.2A		2.8-5.6A	4.3-6.67A
	Efficiency@220Vac	92.0%-93.0%		92.0%-93.0%	92.5%-93.0%
Lamp	LED type	5050SMD
	Chips quantity	48Pcs	64pcs	80pcs	96pcs
	LED consumption	112.0W	140.0W	186.0W	225W
	system consumption	120.0W	150.0W	200.0W	240W
	CCT	5000-5500K
	Lamp lumen efficiency	140-160LM/W
	Initial luminous flux	18600lm	22800lm	30000lm	36000lm
	Luminous maintenance rate	≥80%(50000Hrs)
	CRI	Ra≥70
	Light distribution curve	pls take attachment for reference
	Working temperature	-40℃ ～ +90℃
	Storage temperature	-40℃ ～ +85℃
	IP grade	IP66
	IK grade	IK08
	Lifespan	50000Hrs
	Material	Aluminum + PC
	Lamp type	Class I lamp
	Lamp body color	Matte black

Product Details

200w high power led street light modular design led lamp

· LED street light patent design,

· AC-powered, 100v-277v,

· IP65 waterproof,

· Alloy aluminum body,

· 160lm/w,

· SMD led modular structure

200w high power led street light modular design led lamp

· led street lights

Application
