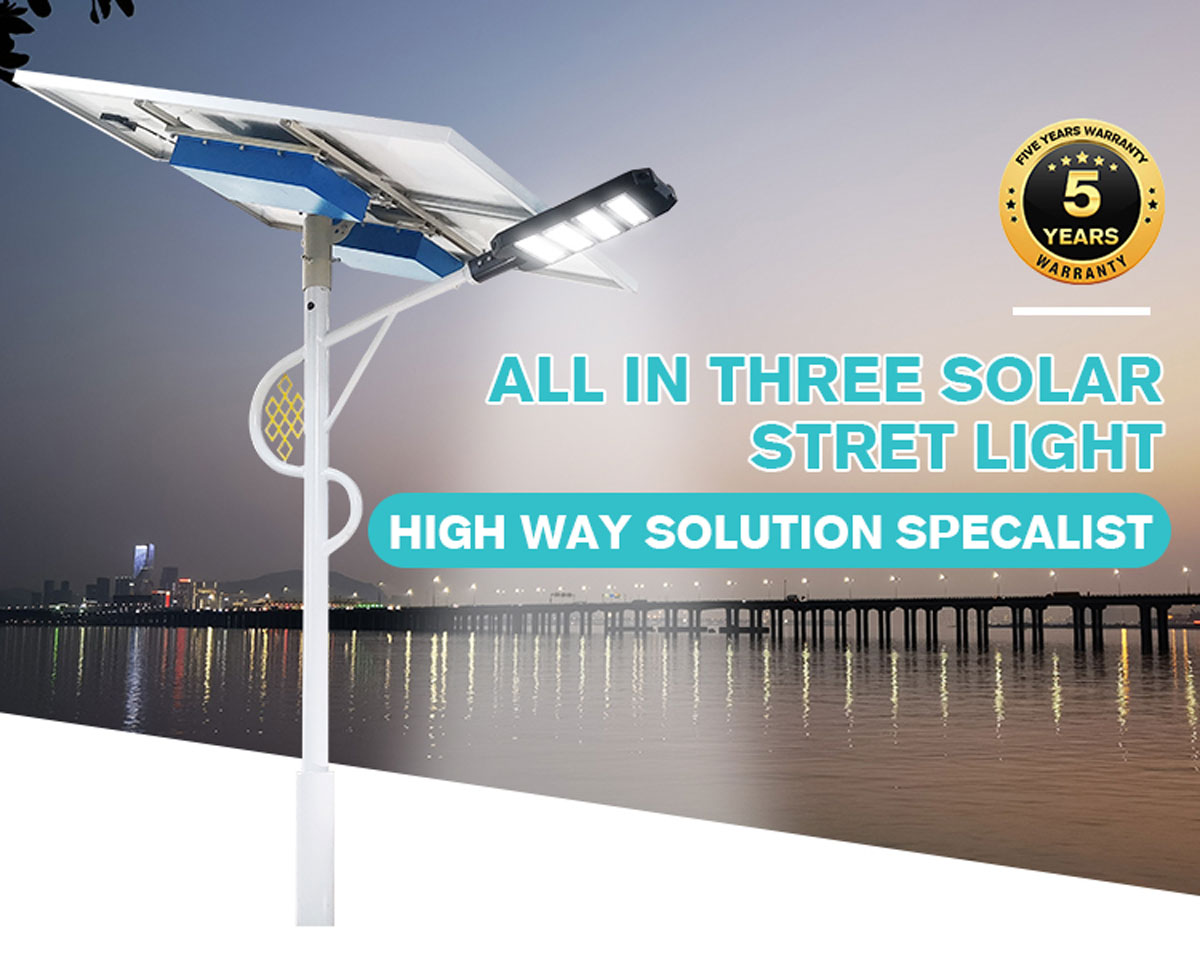

12M install height solar street light led super bright with 5years warranty

Model NO. YF-SLX-150W-3

All in two solar street light, safety technology for LiFePO4 battery safety, Smart energy saving lighting technology, 180lm/w, Patented spaceship alloy aluminum body design...

INQUIRY NOW
Main Features

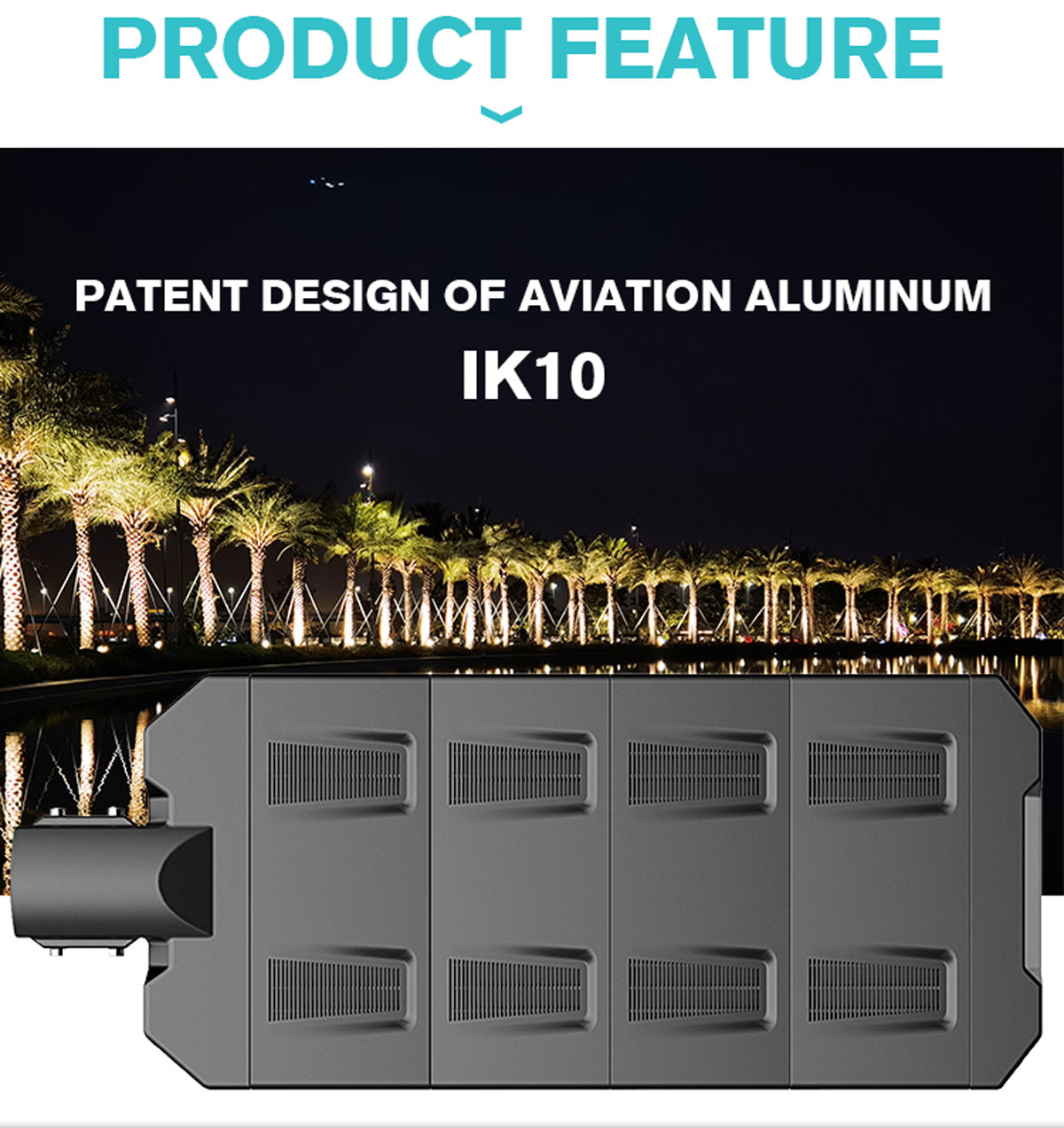

· Patented spaceship alloy aluminum body design, mix and match into different size and capacity

· Individual Energy pack, TCS technology for battery safety, anti-temperature

· Super high lumens output, Specialist product to replace tradition grid power lighting.

· Led module structure

· Perfect solution for main road, high way lighting project.


12M install height solar street light led super bright with 5years warranty

· Bluetooth/IoT system for optional,

· Safety technology for LiFePO4 battery safety,

· Smart energy saving lighting technology,

· Patented spaceship alloy aluminum body design





Parameter
ModelYF-SLX-120W-3YF-SLX-150W-3YF-SLX-200W-3
LED Street Light Power120W(4 LED Modules)150W(5 LED Modules)200W(6 LED Modules)

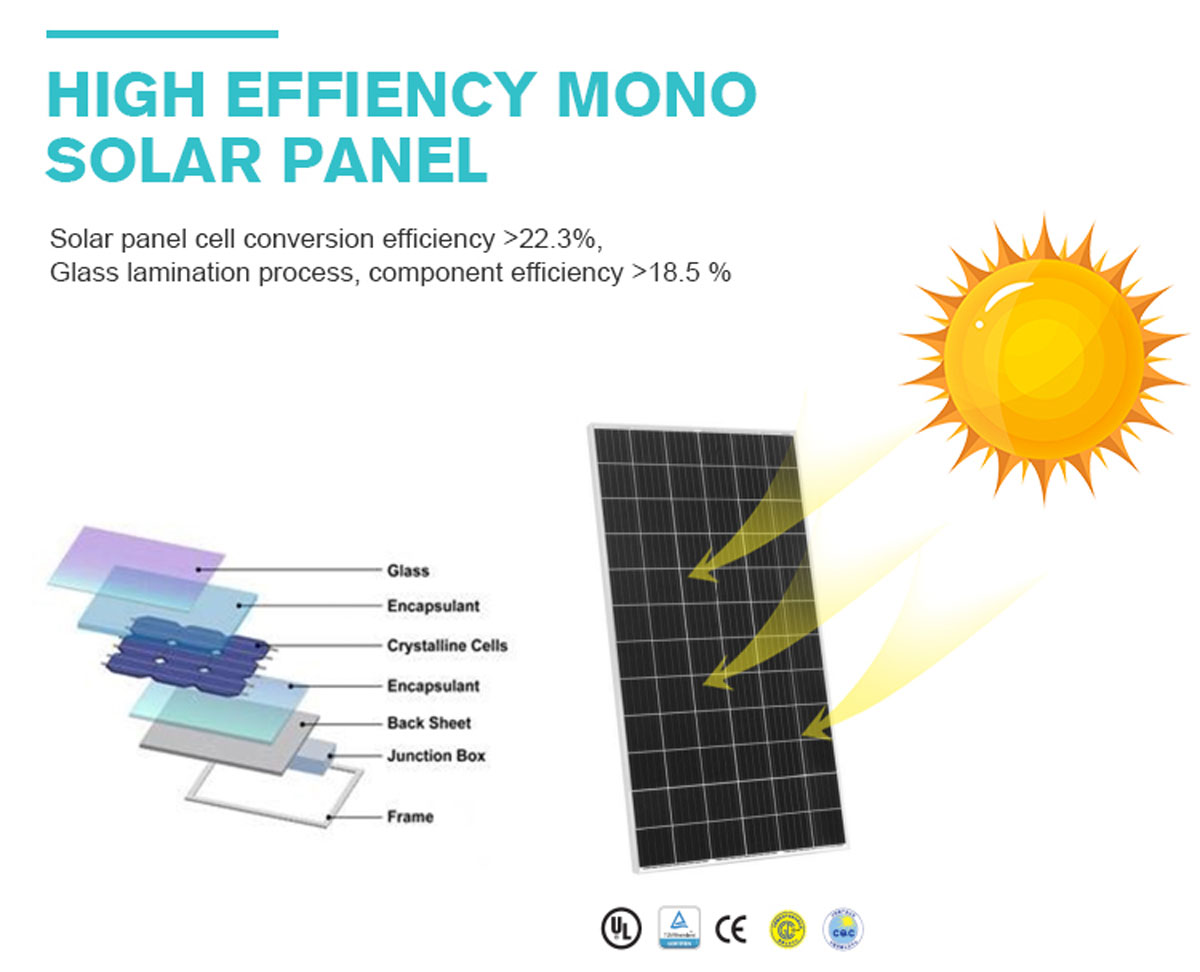

PV Model150W*2pcs180W*2pcs220W*2pcs
Life Time25years ( The power attenuation of each year is around 1%)25years ( The power attenuation of each year is around 1%)25years ( The power attenuation of each year is around 1%)
Light Efficiency180lm/w180lm/w180lm/w

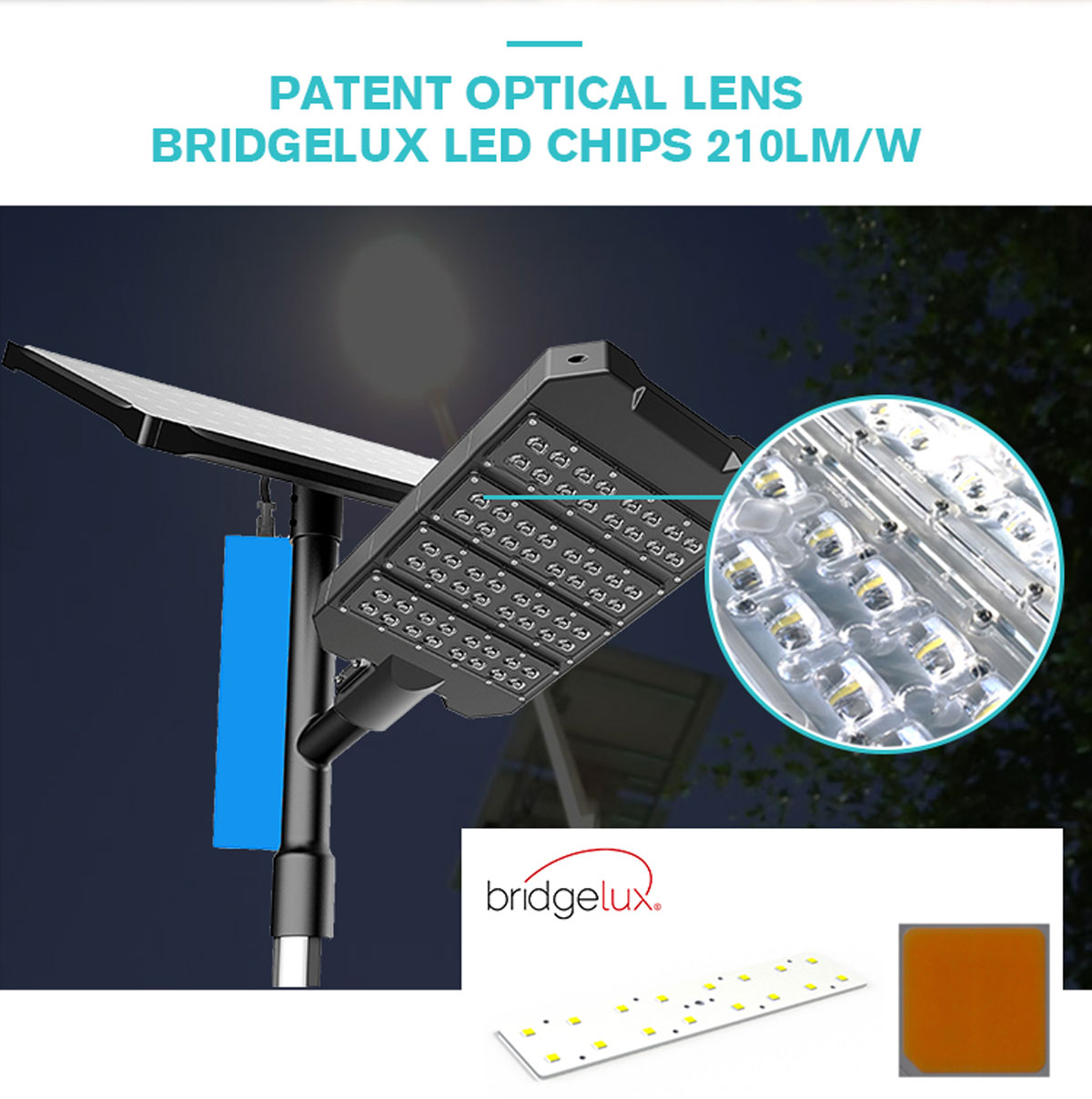

LED Chip5050 LED BridgeLux5050 LED BridgeLux5050 LED BridgeLux
Light Distribution TypeType IIType IIType II
Viewing Angle70°*140°70°*140°70°*140°
Color Temperature3000K-6500K,Typical value(5500K-6000K)3000K-6500K,Typical value(5500K-6000K)3000K-6500K,Typical value(5500K-6000K)
CRI>80>80>80
Lifetime>10 years>10 years>10 years
Battery TapeLiFePO4 BatteryLiFePO4 BatteryLiFePO4 Battery
Battery Capacity1530WH2304WH3072WH
Battery life time(5-8 years)(5-8 years)(5-8 years)

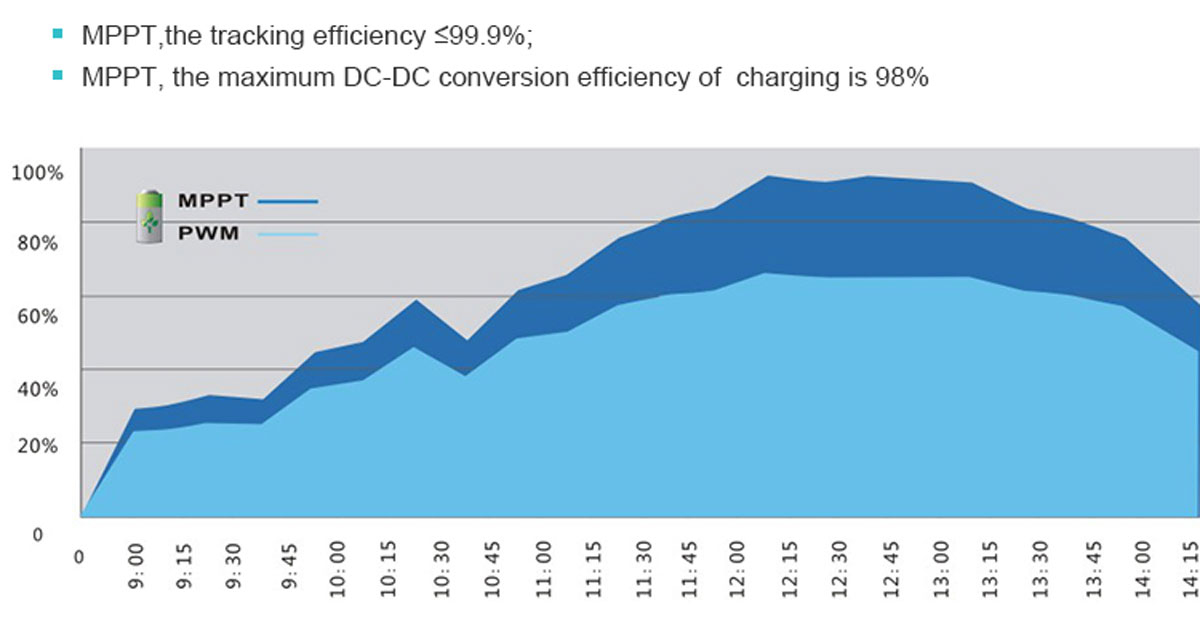

MPPT Change ControllerIncluding Wireless Communucation ModuleIncluding Wireless Communucation ModuleIncluding Wireless Communucation Module
Working modelTime dimmingTime dimmingTime dimming
Circuit ProtectionOvercharge,Discharge,short circuit,open load,lightning protection and other functionsOvercharge,Discharge,short circuit,open load,lightning protection and other functionsOvercharge,Discharge,short circuit,open load,lightning protection and other functions
Life Time8years8years8years
Charging Time(STC)6-8 Hours(With STC)6-8 Hours(With STC)6-8 Hours(With STC)
CertificateCE、ROSH、IP65CE、ROSH、IP65CE、ROSH、IP65
Storage Temperature-20℃~+60℃(When the temperature is below -10℃,derating use  )0℃~45℃0℃~45℃

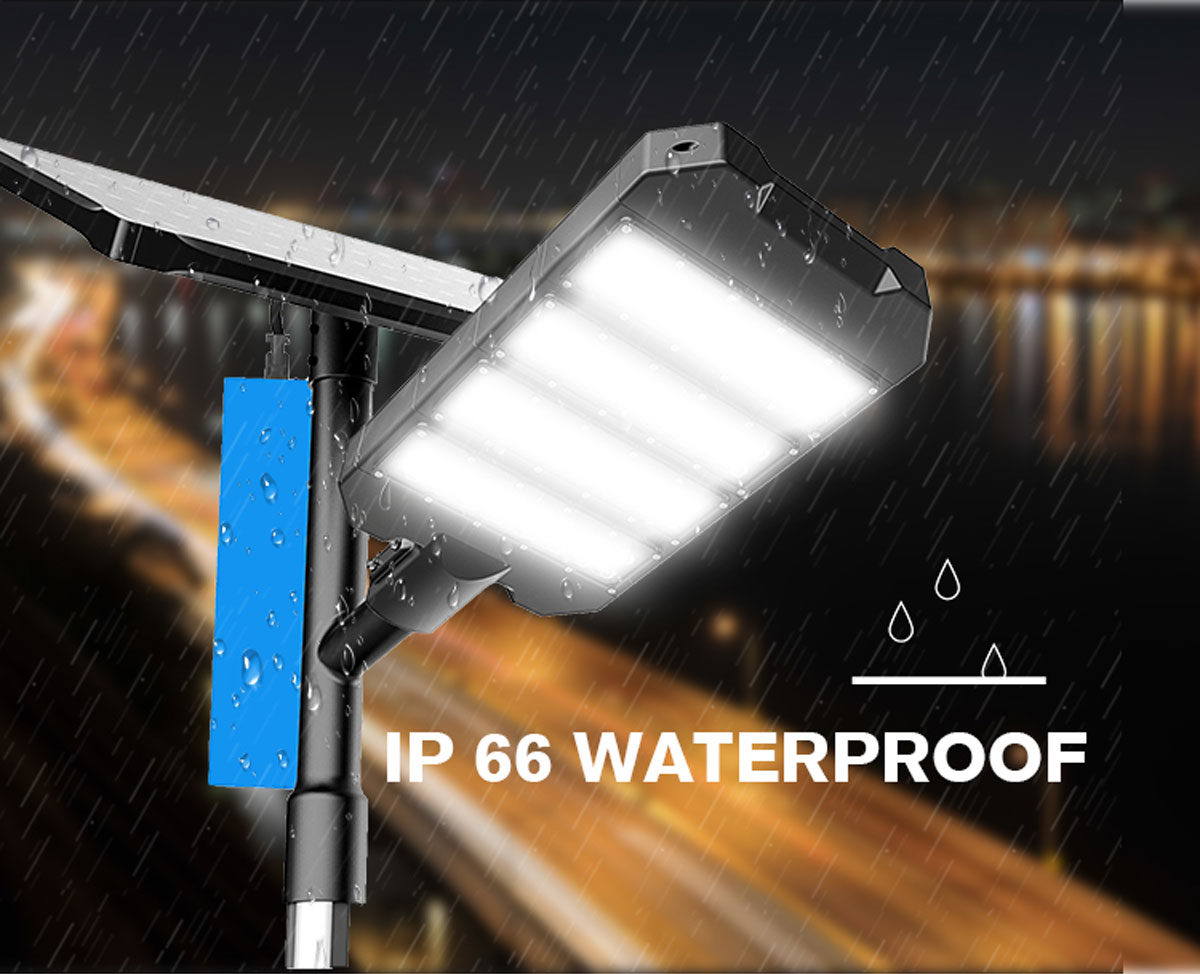

Protection GradeIP65IP65IP65

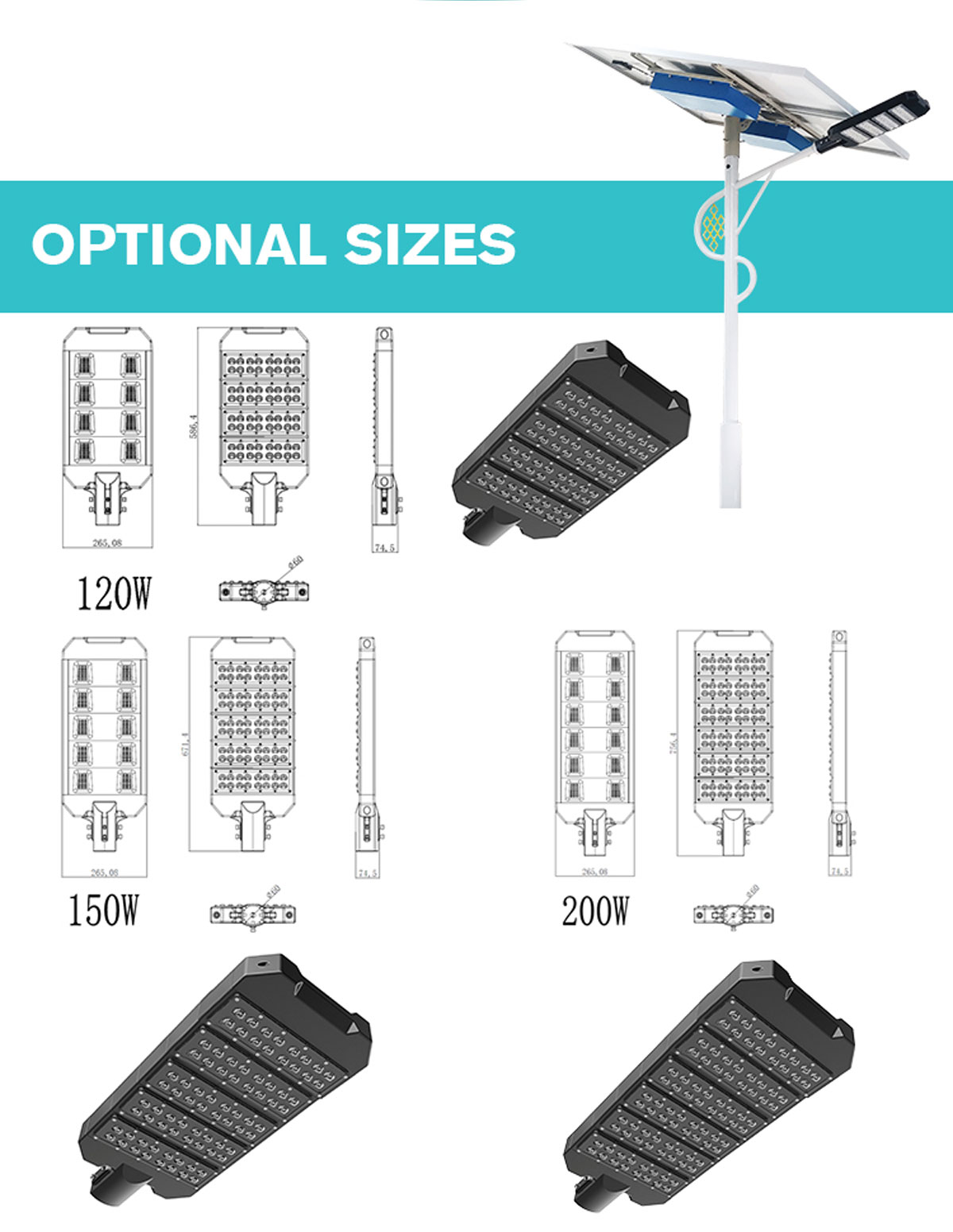

Dimension Size(mm)586*265*74.5mm671*265*74.5mm756*265*74.5mm
Installation Height

8m to 12m light pole

8m to 12m light pole8m to 12m light pole
Installation Diameter≤60mm≤60mm≤60mm
Warranry3years3years3years


Product Details

solarX-3.jpg2.jpg3.jpg4.jpg5.jpg6.jpg7.jpg8.jpg9.jpg10.jpgc-1.jpgc-2.jpgc-3.jpgc-4.jpg

FAQ:

Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.



Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.



Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.



Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.





Q: are your manufacturer? how about your production capacity and delivery lead time?

A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.



Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.



Q: do you help installation, maintenance and commissioning?

A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.
