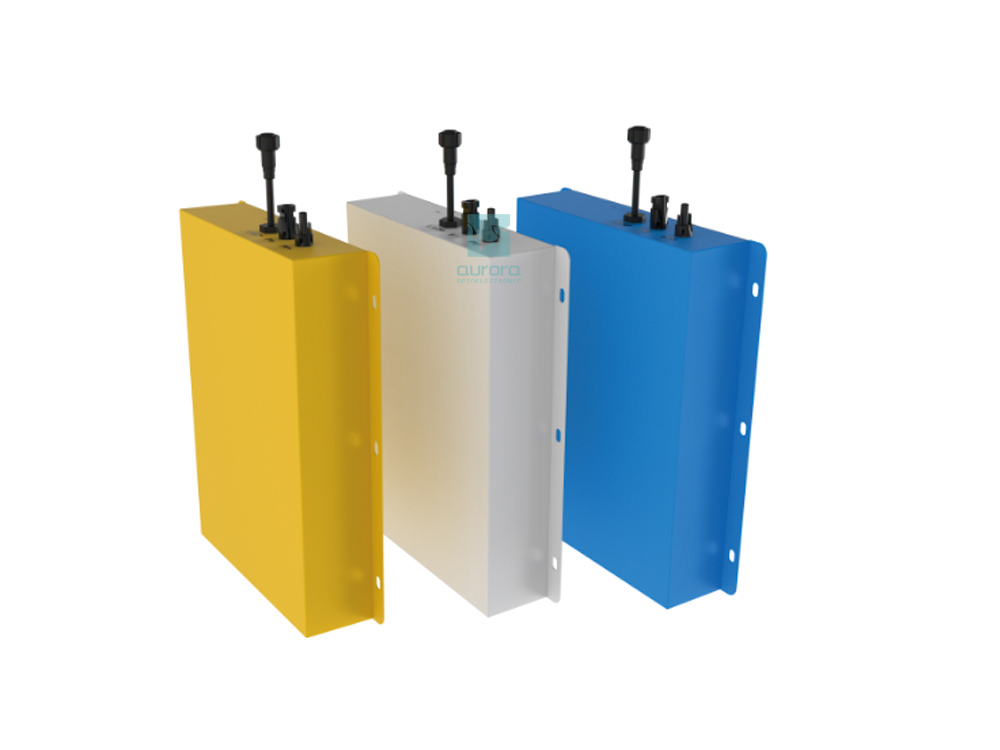

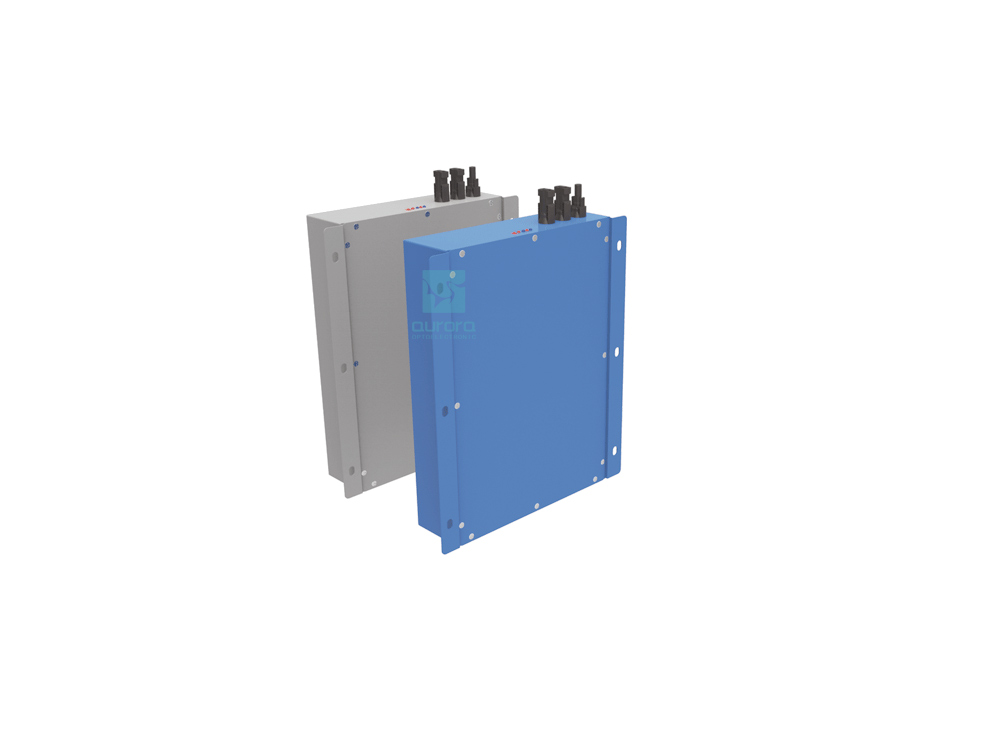

25.6V 24V Solar street light Battery pack, energy pack, solar off grid system, IP65, bluetooth app...
INQUIRY NOW· The battery adopts power lithium iron phosphate battery, the cycle life is more than 3000 times, and it can be used for 5-8 years;
· MPPT controller, faster charging and better protection function;
· LED adopts patented adaptive function, only need to set power, automatically adapt to 5-17 strings of LED lamp beads
· All aluminum alloy shell, anodized surface, anti-corrosion, reliable structure, convenient installation;
· Bluetooth APP management, human-computer interaction is more intuitive, and the operation is convenient;
Model No. | YF-BP-802 | YF-BP-803 | YF-BP-804 | YF-BP-805 | |
Battery type | LiFePO4 | ||||
Battery capacity | 1280WH | 1536WH | 2304WH | 3072WH | |
Rated power | 100W Max | 160W Max | 200W Max | ||
Suggest LED power Max | 80W | 100W | 150W | 200W | |
LED volts | 30V—54V | ||||
MPPT volts | 30V≤Vmp≤60V | 30V≤Vmp≤70V | |||
Charge model | MPPT | ||||
Charge current | 10A | 15A | 20A | ||
Solar panel input volts Max | Vmp≤55V | Vmp≤85V | |||
Solar panel power | Pm≤260W | Pm≤390W | Pm≤520W | ||
Communication model | Bluetooth app | ||||
Working model | 12hrs (can be adjusted) | ||||
N.W(kg) | 13.5 | / | / | / | / |
G.W(kg) | 14.5 | / | / | / | / |
Demension(mm) | 325*340*85 | 415*340*85 | 485*340*85 | 580*260*85 | 690*240*110 |
Ctn size(mm) | 360*380*130 | 460*380*130 | 530*380*130 | 630*300*130 | 740*280*150 |
DIY off grid solar system solar energy power packs 3KV for solar street lights system
· Solar street light Battery pack, 24V, 25.6V
· Energy pack,
· Solar off grid system,
· IP65,
· Bluetooth app
DIY off grid solar system solar energy power packs 3KV for solar street lights system
· LiFePO4 battery pack solar system
